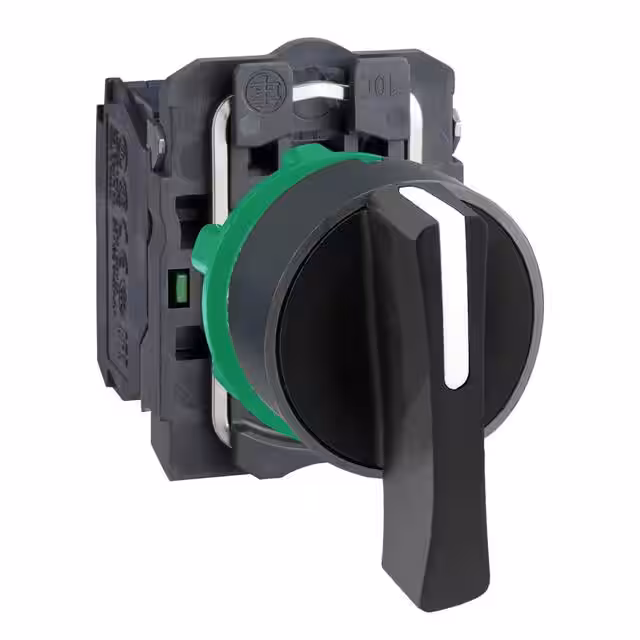

XB5AJ33

Manufacturer :

Schneider Electric

Product Category :

Voltage Rating - AC :

120 V

With front ring :

yes

Index Angle :

45 Deg

Illumination :

Non-Illuminated

Material front ring :

Plastic

Brand :

Schneider Electric

Subcategory :

Switches

Product Type :

Rotary Switches

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Depth :

70mm

Number of Positions :

3

Electrical Life :

1,000,000 Cycles

Product Category :

Rotary Switches

Mounting Type :

Panel Mount

Depth Behind Flange :

-

Voltage Rating :

600 VAC/DC

Colour front ring :

Black

Contact Form :

DPDT

Illumination Voltage (Nominal) :

-

Contact Plating :

Silver Alloy

Number of contacts as normally closed contact :

0

Features :

-

Switch Function :

Off-On

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Lamp Type :

-

Length :

30mm

Current Rating :

1.2 A

Termination Style :

Screw Terminal

RoHS :

Details

Number of contacts as normally open contact :

2

Degree of protection (NEMA) :

13

Current Rating (Amps) :

6A (AC), 550mA (DC)

With light source :

No

Width :

48mm

Product Status :

Active

Actuator :

Knob

Dimensions :

30 x 48 x 70mm

Illumination Type, Color :

-

Series :

Harmony XB5

Type of electric connection :

Screw connection

Approval Agency :

CSA, UL

Type :

Standard

Degree of protection (IP) :

IP67/IP69K

Mechanical Life :

1,000,000 Cycles

Illumination Color :

-

Manufacturer :

Schneider Electric

Circuit :

DPST-NO

Terminal Type :

Screw

Reach Compliance Code :

Unknown

Voltage Rating - DC :

125 V

Type of control element :

Long turning handle

Operating Temperature :

-40°C ~ 70°C

Switch Type :

ROTARY SWITCH

Number of contacts as change-over contact :

0

Package :

Box
