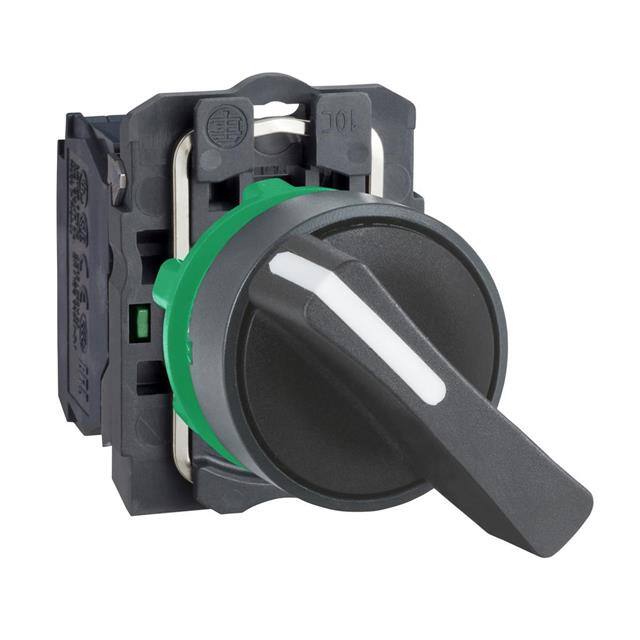

XB5AJ21

Share

Or copy the link below:

Mfr.Part #
XB5AJ21
Manufacturer
Schneider Electric
Package / Case
Datasheet
Download
Description
HARMONY XB5, SELECTOR SWITCH, PL
Stock
30,647
In Stock :
30,647

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Schneider Electric
Product Category :
Number of contacts as normally open contact :
1
Illumination :
Non-Illuminated
Colour front ring :
Black
Subcategory :
Switches
Type of electric connection :
Screw connection
Material front ring :
Plastic
Voltage Rating - DC :
125 V
Contact Plating :
Silver Alloy
Product Status :
Active
Ingress Protection :
IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof
Circuit :
SPST-NO
Series :
Harmony XB5
Angle of Throw :
90°
Switch Type :
ROTARY SWITCH
Illumination Color :
-
Voltage Rating :
600 VAC/DC
Contact Configuration :
SPST
With front ring :
yes
Illumination Voltage (Nominal) :
-
Approval Agency :
CSA, UL
Number of contacts as normally closed contact :
0
Operating Temperature :
-40°C ~ 70°C
Voltage Rating - AC :
120 V
Mounting Type :
Panel Mount
Electrical Life :
1,000,000 Cycles
RoHS :
Details
Manufacturer :
Schneider Electric
Termination Style :
Screw Terminal
Product Category :
Rotary Switches
Panel Cutout Dimensions :
Circular - 22.00mm Dia
Number of Positions :
2
IP Rating :
IP67
Current Rating (Amps) :
6A (AC), 550mA (DC)
Contact Form :
SPST
Number of contacts as change-over contact :
0
Product Type :
Rotary Switches
Actuator :
Knob
Actuator Type :
Knob
Illumination Type, Color :
-
Depth Behind Flange :
-
Index Angle :
90 Deg
Switch Function :
Off-On
With light source :
No
Type of control element :
Long turning handle
Package :
Box
Terminal Type :
Screw
Features :
-
Degree of protection (NEMA) :
13
Current Rating :
1.2 A
Degree of protection (IP) :
IP67/IP69K
Lamp Type :
-
Mechanical Life :
1,000,000 Cycles
Reach Compliance Code :
Unknown
Type :
Standard
Brand :
Schneider Electric
Datasheets
XB5AJ21
Introducing Schneider Electric XB5AJ21 from Xinshop,where excellence meets affordability. This product stands out with its Circuit:SPST-NO, Operating Temperature:-40°C ~ 70°C, Mounting Type:Panel Mount, Type:Standard, XB5AJ21 pinout, XB5AJ21 datasheet PDF, XB5AJ21 amp .Beyond Schneider Electric XB5AJ21 ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

Schneider Electric XB5AJ21


XB5AJ21 datasheet pdf and Selector Switches product details from Schneider Electric stock available at
