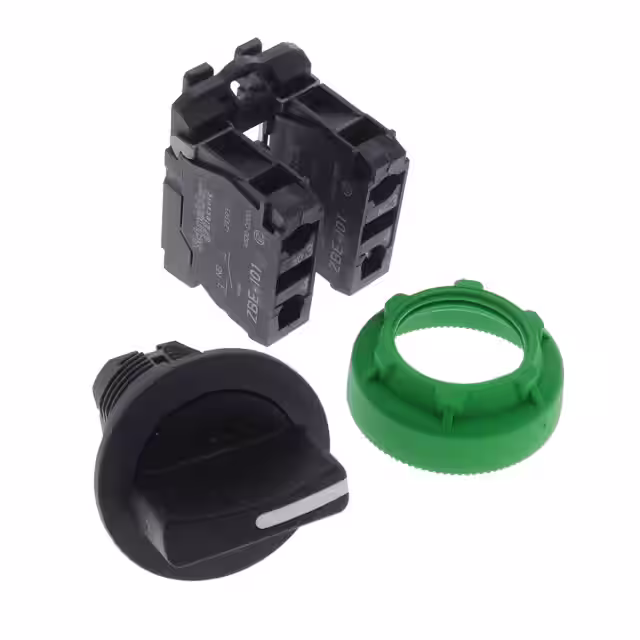

XB5FD33

Manufacturer :

Schneider Electric

Product Category :

Manufacturer :

Schneider Electric

Type of electric connection :

Screw connection

Brand :

Schneider Electric

Features :

-

Material front ring :

Plastic

Illumination Type, Color :

-

Subcategory :

Switches

Mounting Style :

Panel Mount

Product Type :

Control Switches

Series :

XB5F

Colour front ring :

Black

Product Status :

Active

Product Category :

Control Switches

Current Rating :

3 A

With front ring :

yes

Type of control element :

Other

Maximum Operating Temperature :

+ 70 C

Degree of protection (NEMA) :

13

RoHS :

Details

Degree of protection (IP) :

IP66

IP Rating :

IP67

Control Type :

Selector

Package :

Box

Terminal Type :

Screw

Switch Function :

Off-On

Approval Agency :

CSA, UL

Circuit :

DPST-NO

Type :

Standard

Ingress Protection :

IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Number of contacts as normally closed contact :

0

Voltage Rating - AC :

120 V

Mounting Type :

Panel Mount

Number of Poles :

2 Pole

Termination Style :

Screw Terminal

Illumination :

Non-Illuminated

Actuator Style :

Round

Contact Configuration :

DPST

Depth Behind Flange :

-

With light source :

No

Panel Cutout Dimensions :

Circular - 30.50mm Dia

Number of contacts as normally open contact :

2

Operating Temperature :

-40°C ~ 70°C

Contact Form :

DPST

Voltage Rating - DC :

125 V

Minimum Operating Temperature :

- 40 C

Actuator :

Handle

Number of Positions :

3

Mechanical Life :

1,000,000 Cycles

Electrical Life :

1,000,000 Cycles

Angle of Throw :

45°

Number of contacts as change-over contact :

0

Current Rating (Amps) :

6A (AC), 550mA (DC)

Illumination Voltage (Nominal) :

-
