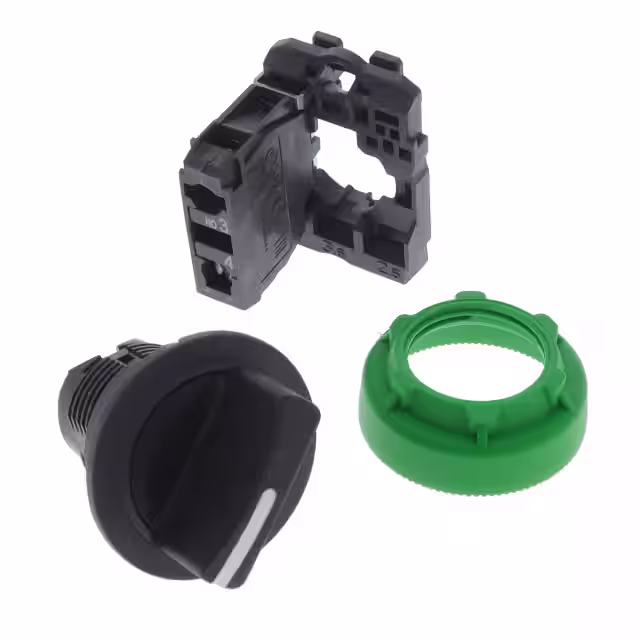

XB5FD41

Manufacturer :

Schneider Electric

Product Category :

Approval Agency :

CSA, UL

Voltage Rating - AC :

120 V

Mounting Style :

Panel Mount

Number of Poles :

1 Pole

Minimum Operating Temperature :

- 40 C

Number of contacts as normally open contact :

1

Features :

-

Angle of Throw :

90°

Illumination :

Non-Illuminated

Operating Temperature :

-40°C ~ 70°C

Product Type :

Control Switches

Illumination Voltage (Nominal) :

-

Maximum Operating Temperature :

+ 70 C

Subcategory :

Switches

Number of contacts as normally closed contact :

0

Type of electric connection :

Screw connection

Actuator :

Handle

Control Type :

Selector

Circuit :

SPST-NO

Brand :

Schneider Electric

Actuator Style :

Round

Type :

Standard

Contact Form :

SPST

Colour front ring :

Black

With light source :

No

Product Category :

Control Switches

Electrical Life :

1,000,000 Cycles

Contact Configuration :

SPST

Illumination Type, Color :

-

Ingress Protection :

IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Actuator Type :

Spring Return

Current Rating (Amps) :

6A (AC), 550mA (DC)

Panel Cutout Dimensions :

Circular - 30.50mm Dia

Depth Behind Flange :

-

Number of contacts as change-over contact :

0

Mechanical Life :

1,000,000 Cycles

Material front ring :

Plastic

Package :

Box

Switch Function :

Off-On

Type of control element :

Other

RoHS :

Details

Series :

XB5F

Degree of protection (NEMA) :

13

Voltage Rating - DC :

125 V

Termination Style :

Screw Terminal

Current Rating :

3 A

IP Rating :

IP67

Number of Positions :

2

Manufacturer :

Schneider Electric

With front ring :

yes

Terminal Type :

Screw

Product Status :

Active

Degree of protection (IP) :

IP66

Mounting Type :

Panel Mount
