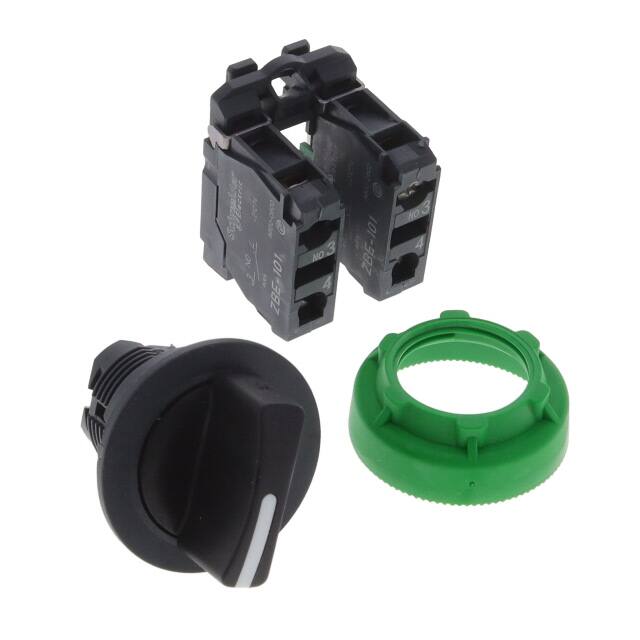

XB5FD53

Manufacturer :

Schneider Electric

Product Category :

Angle of Throw :

45°

Contact Configuration :

DPST

Switch Function :

Off-On

Actuator Type :

Spring Return

Control Type :

Selector

Type :

Standard

Product Status :

Active

Subcategory :

Switches

Manufacturer :

Schneider Electric

Voltage Rating - AC :

120 V

Mounting Style :

Panel Mount

Product Category :

Control Switches

Depth Behind Flange :

-

Current Rating (Amps) :

6A (AC), 550mA (DC)

Terminal Type :

Screw

Number of Positions :

3

Features :

-

RoHS :

Details

Actuator :

Handle

Series :

XB5F

Illumination :

Non-Illuminated

Brand :

Schneider Electric

Illumination Type, Color :

-

Maximum Operating Temperature :

+ 70 C

Current Rating :

3 A

Package :

Box

Mounting Type :

Panel Mount

Number of Poles :

2 Pole

Product Type :

Control Switches

Circuit :

DPST-NO

Ingress Protection :

IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Minimum Operating Temperature :

- 40 C

Mechanical Life :

1,000,000 Cycles

Actuator Style :

Round

Electrical Life :

1,000,000 Cycles

Termination Style :

Screw Terminal

Voltage Rating - DC :

125 V

Panel Cutout Dimensions :

Circular - 30.50mm Dia

Operating Temperature :

-40°C ~ 70°C

Contact Form :

DPST

IP Rating :

IP67

Approval Agency :

CSA, UL

Illumination Voltage (Nominal) :

-
