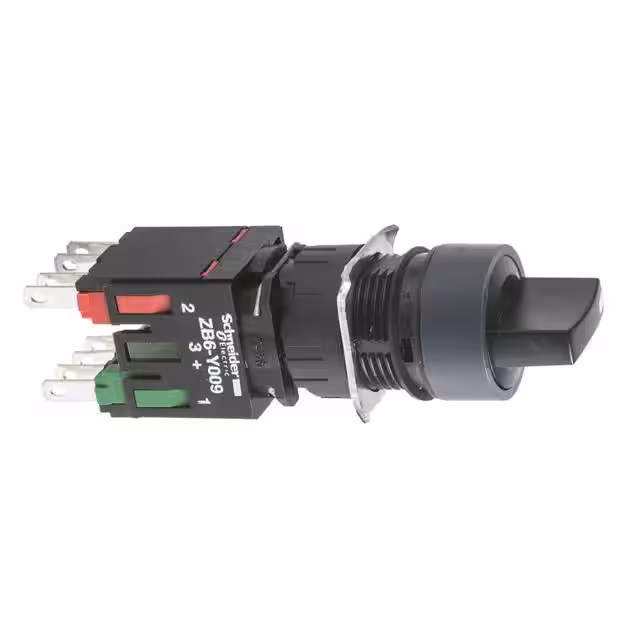

XB6AD221B
Or copy the link below:
- Mfr.Part #
- XB6AD221B
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- COMPLETE SELECTOR SWITCH, HARMON
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Product Type :
- Rotary Switches
- Electrical Life :
- 1,000,000 Cycles
- Voltage Rating - DC :
- 125 V
- Width :
- 18mm
- Panel Cutout Dimensions :
- Circular - 16.00mm Dia
- Illumination Type, Color :
- -
- Illumination Color :
- -
- Length :
- 60.5mm
- Type :
- Standard
- Contact Form :
- SPST
- Termination Style :
- Quick Connect - 0.110" (2.8mm)
- Illumination Voltage (Nominal) :
- -
- Reach Compliance Code :
- Unknown
- Switch Type :
- ROTARY SWITCH
- Subcategory :
- Switches
- Depth Behind Flange :
- -
- Actuator :
- Knob
- Terminal Type :
- Quick Connect, Solder Tag
- Index Angle :
- 60 deg
- Brand :
- Schneider Electric
- Dimensions :
- 18 x 60.5mm
- Operating Temperature :
- -25°C ~ 70°C
- Current Rating :
- 1.5 A, 100 mA
- Contact Plating :
- Silver Alloy
- Voltage Rating - AC :
- 120 V
- Number of Positions :
- 2
- RoHS :
- Details
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Current Rating (Amps) :
- 3A (AC), 220mA (DC)
- Mechanical Life :
- 500,000 Cycles
- Lamp Type :
- -
- Product Category :
- Rotary Switches
- Features :
- -
- Manufacturer :
- Schneider Electric
- Voltage Rating :
- 240 VAC, 250 VDC
- Mounting Type :
- Panel Mount
- Circuit :
- DPST-NO/NC
- Illumination :
- Non-Illuminated
- Angle of Throw :
- 60°
- Product Status :
- Active
- Switch Function :
- On-Off, Off-On
- Series :
- Harmony XB6
- Package :
- Box
- Approval Agency :
- CCC, CSA, UL
- Datasheets
- XB6AD221B
