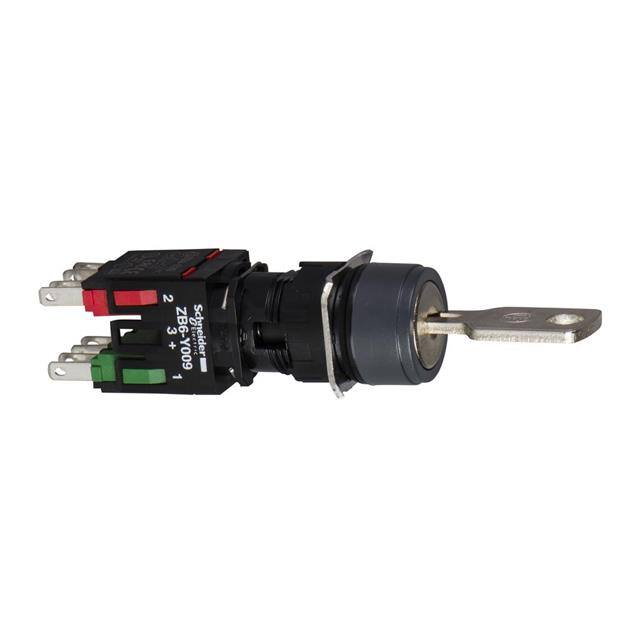

XB6AGH5B
Or copy the link below:
- Mfr.Part #
- XB6AGH5B
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- COMPLETE SELECTOR SWITCH, HARMON
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Mounting Type :
- Panel Mount
- Features :
- -
- Product Category :
- Pushbutton Switches
- Voltage Rating - DC :
- 125 V
- Reach Compliance Code :
- Unknown
- Switch Function :
- On-Off, Off-On
- RoHS :
- Compliant
- Subcategory :
- Switches
- Package :
- Box
- Termination Style :
- Quick Connect - 0.110" (2.8mm)
- Length :
- 75.5 mm
- Illumination Type, Color :
- -
- Number of Positions :
- 2
- Mounting Style :
- Panel Mount
- Illumination :
- Non-Illuminated
- Depth Behind Flange :
- -
- Approval Agency :
- CE, CSA, UL
- Voltage Rating - AC :
- 120 V
- Illumination Voltage (Nominal) :
- -
- Product Status :
- Active
- Index Angle :
- 70 °
- Type :
- Standard
- Termination :
- Solder
- Mechanical Life :
- 200,000 Cycles
- Manufacturer :
- Schneider Electric
- Series :
- Harmony XB6
- Panel Cutout Dimensions :
- Circular - 16.00mm Dia
- Product Type :
- Pushbutton Switches
- Lamp Type :
- -
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Operating Temperature :
- -25°C ~ 70°C
- Current Rating (Amps) :
- 3A (AC), 220mA (DC)
- Width :
- 18 mm
- Brand :
- Schneider Electric
- Switch Type :
- KEYLOCK SWITCH
- Electrical Life :
- 1,000,000 Cycles
- Circuit :
- DPST-NO/NC
- Datasheets
- XB6AGH5B
XB6AGH5B datasheet pdf and Selector Switches product details from Schneider Electric stock available at
