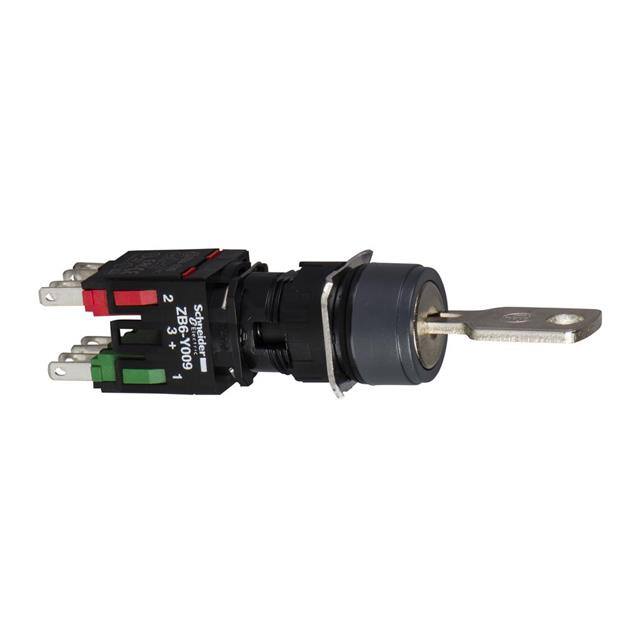

XB6AGC5B

Manufacturer :

Schneider Electric

Product Category :

Electrical Life :

1,000,000 Cycles

Contact Configuration :

1 NO + 1 NC

Mounting Type :

Panel Mount

With light source :

No

Type of electric connection :

Flat plug-in connection

Type of control element :

Key

Product Type :

Panel Mount Indicators / Switch Indicators

Current Rating (Amps) :

3A (AC), 220mA (DC)

Panel Cutout Dimensions :

Circular - 16.00mm Dia

Color :

Black

Illumination :

Non-Illuminated

IP Rating :

IP65

Degree of protection (NEMA) :

Other

RoHS :

Compliant

Degree of protection (IP) :

IP65/IP67

Number of contacts as normally closed contact :

1

Mechanical Life :

200,000 Cycles

Material front ring :

Plastic

Terminal Type :

Quick Connect

Maximum Operating Temperature :

+70°C

Manufacturer :

Schneider Electric

Approval Agency :

CCC, CSA, UL

Number of contacts as change-over contact :

0

Subcategory :

Switch Accessories

Termination :

Tab

Index Angle :

70 °

Voltage Rating - DC :

125 V

Minimum Operating Temperature :

-25°C

Product Category :

Industrial Panel Mount Indicators / Switch Indicators

With front ring :

yes

Ingress Protection :

IP65 - Dust Tight, Water Resistant

Contact Material :

Silver Alloy

Colour front ring :

Black

Illumination Voltage (Nominal) :

-

Number of Positions :

2

Reach Compliance Code :

Unknown

Depth Behind Flange :

-

Operating Temperature :

-25°C ~ 70°C

Voltage Rating - AC :

120 V

Termination Style :

Quick Connect - 0.110" (2.8mm)

Mounting Style :

Panel Mount

Type :

Standard

Switch Type :

KEYLOCK SWITCH

Product Status :

Active

Voltage Rating :

240 VAC, 250 VDC

Number of contacts as normally open contact :

1

Series :

Harmony XB6

Package :

Box

Brand :

Schneider Electric

Circuit :

DPST-NO/NC

Body Material :

Metal

Illumination Type, Color :

-

Switch Function :

On-Off, Off-On

Operating Temperature Range :

-25 → +70°C

Features :

-
