Motion sensing technology has become an integral part of many electronic devices, ranging from smartphones and wearables to drones and virtual reality systems. The LSM6DS3TR is a state-of-the-art inertial measurement unit (IMU) that is driving innovation in the field of motion sensing. In this article, we will explore the key features, applications, and advantages of the LSM6DS3TR, shedding light on its potential to revolutionize the way we interact with technology.

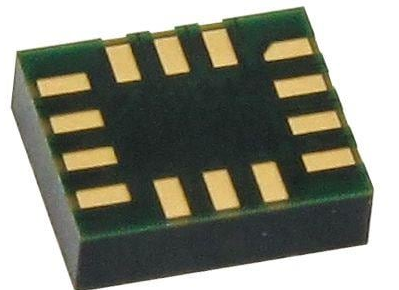

The LSM6DS3TR is a high-performance 6-axis IMU developed by leading semiconductor manufacturers. It combines a 3-axis accelerometer and a 3-axis gyroscope in a single compact package. The integration of these two sensors allows for accurate and comprehensive motion sensing capabilities, providing valuable data for various applications.

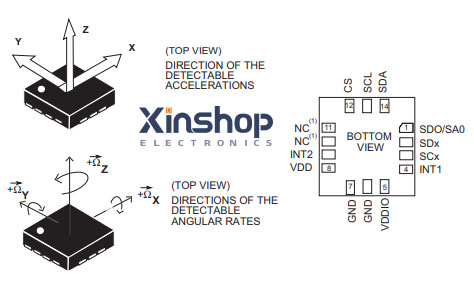

Pin Connection

1. 6-Axis Motion Sensing: The LSM6DS3TR features a 3-axis accelerometer and a 3-axis gyroscope, enabling precise measurement of both linear and rotational motion. This comprehensive motion sensing capability opens up a wide range of possibilities for applications that require accurate motion tracking.

2. High Accuracy and Sensitivity: The IMU offers high accuracy and sensitivity, allowing for the detection of even subtle movements and changes in orientation. This level of precision is crucial in applications such as gaming, augmented reality, and navigation systems.

3. Low Power Consumption: The LSM6DS3TR is designed with power efficiency in mind, consuming minimal power while delivering exceptional performance. This makes it suitable for battery-powered devices, extending their battery life without compromising on motion sensing capabilities.

4. Digital and Analog Output: The LSM6DS3TR provides both digital and analog output options, offering flexibility in data acquisition and compatibility with various microcontrollers and systems.

More Features

· Power consumption: 0.9 mA in combo normal mode

and 1.25 mA in combo high-performance mode up to

1.6 kHz.

· “Always-on” experience with low power

consumption for both accelerometer and gyroscope

· Smart FIFO up to 8 kbyte based on features set

· Compliant with Android K and L

· Hard, soft ironing for external magnetic sensor

corrections

· ±2/±4/±8/±16 g full scale

· ±125/±250/±500/±1000/±2000 dps full scale

· Analog supply voltage: 1.71 V to 3.6 V

· Independent IOs supply (1.62 V)

· Compact footprint, 2.5 mm x 3 mm x 0.83 mm

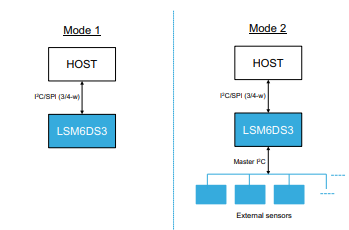

· SPI/I2C serial interface with main processor data

The LSM6DS3TR finds application in a wide array of consumer electronics, industrial systems, and emerging technologies, including:

1. Mobile Devices: In smartphones, tablets, and wearables, the LSM6DS3TR enables features such as screen rotation, step counting, gesture recognition, and image stabilization. It enhances the overall user experience by providing accurate motion data for intuitive interactions.

2. Gaming and Virtual Reality: The precise motion sensing capabilities of the LSM6DS3TR enhance gaming experiences by enabling realistic motion tracking and gesture-based controls. In virtual reality systems, it contributes to immersive and responsive environments.

3. Robotics and Drones: The LSM6DS3TR plays a vital role in robotics and drones, providing critical motion data for navigation, stabilization, and accurate control. It enables autonomous systems to perceive their surroundings and adapt their movements accordingly.

4. Sports and Fitness: The LSM6DS3TR is utilized in sports and fitness devices to track activities, monitor movements, and provide accurate data for analysis, training, and performance improvement.

Typical application

· Pedometer, step detector and step counter

· Significant motion and tilt functions

· Indoor navigation

· Tap and double-tap detection

· IoT and connected devices

· Intelligent power saving for handheld devices

· Vibration monitoring and compensation

· Free-fall detection

· 6D orientation detection

1. Compact Size: The LSM6DS3TR's small form factor allows for integration into compact devices, making it suitable for applications where space is limited.

2. High Performance: With its high accuracy and sensitivity, the LSM6DS3TR delivers reliable and precise motion data, ensuring accurate motion tracking and control.

3. Power Efficiency: The low power consumption of the LSM6DS3TR optimizes battery life, enabling prolonged operation in portable and battery-powered devices.

4. Versatility: The LSM6DS3TR's compatibility with various microcontrollers and systems, along with its flexible output options, makes it adaptable to a wide range of applications.

The LSM6DS3TR IMU represents a significant advancement in motion sensing technology. Its 6-axis motion sensing capabilities, high accuracy, low power consumption, and compact design make it a powerful tool for various applications, including mobile devices, gaming systems, robotics, and sports and fitness devices. As the demand for motion sensing continues to grow, the LSM6DS3TR is poised to play a pivotal role in enabling innovative and immersive user experiences while driving the development of emerging technologies.
