What is NLSV4T244MUTAG Translators: Datasheet, Specification

Dear friends, this post is going to take you to go through the basis of NLSV4T244MUTAG.

NLSV4T244MUTAG Overview

The NLSV4T244 is a level translator that can convert signals between different voltage levels(configurable dual−supply voltage ). It is a 4-bit device with two sets of input and output ports, namely An and Bn. What sets it apart is that it can track two separate power supply rails, VCCA and VCCB, for the input and output ports, respectively. The voltage levels of both supply rails can be configured within a range of 0.9 V to 4.5 V. This feature enables the NLSV4T244 to perform universal low-voltage translation, allowing seamless conversion of signals from the An input port to the Bn output port.

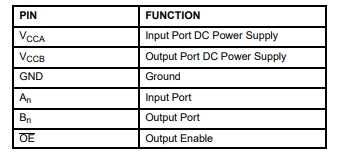

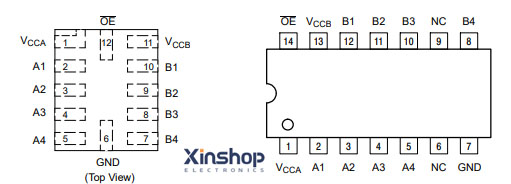

NLSV4T244MUTAG Pinout

NLSV4T244MUTAG CAD Model

Symbol

Footprint

3D-Model

NLSV4T244MUTAG   Features

It Features the following characteristics

• Wide VCCA and VCCB Operating Range: 0.9 V to 4.5 V

• High−Speed w/ Balanced Propagation Delay

• Inputs and Outputs have OVT Protection to 4.5 V

• Non−preferential VCCA and VCCB Sequencing

• Outputs at 3−State until Active VCC is Reached

• Power−Off Protection

• Outputs Switch to 3−State with VCCB at GND

• Ultra−Small Packaging: 1.7 mm x 2.0 mm UQFN12

• NLVSV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

• These are Pb−Free Devices

NLSV4T244MUTAG   Applications

• Mobile Phones, PDAs, Other Portable Devices

NLSV4T244MUTAG   Alternatives

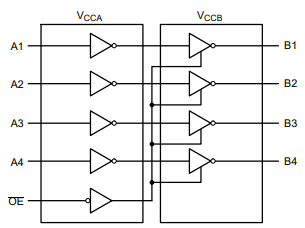

NLSV4T244MUTAG   Typical Application Circuit

NLSV4T244MUTAG   Marking Diagram

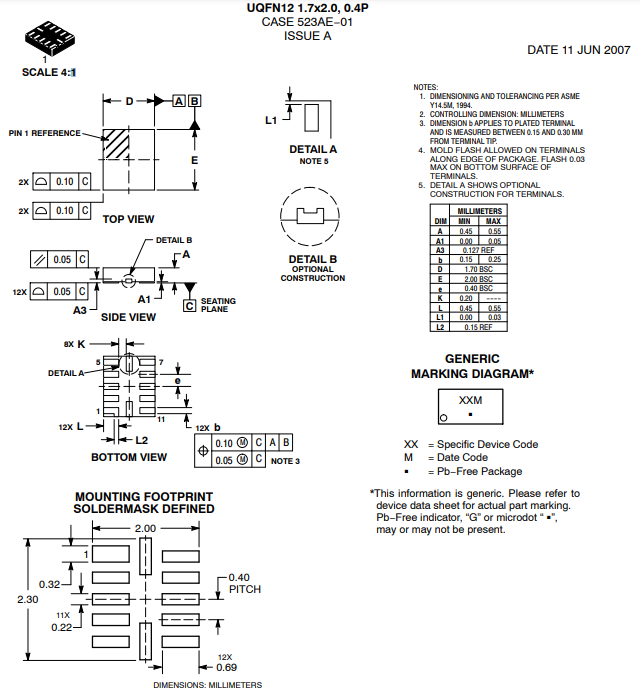

 NLSV4T244MUTAG   Package Dimension

A breakdown of the part number:

- "NLS": This is the series or family name of the IC, which in this case is not specified in the available information.

- "V4T": This indicates the specific variant or version of the IC.

- "244": The number "244" typically refers to the function of the IC, in this case, a transceiver.

- "M": It represents the package type. In this case, "M" likely indicates a surface-mount package.

- "UTAG": This is an additional code that might represent specific package or assembly options. However, without further information, the exact meaning of "UTAG" cannot be determined.

Frequently Asked Questions

What is NLSV4T244MUTAG?

The part number "NLSV4T244MUTAG" refers to a specific integrated circuit (IC) component manufactured by ON Semiconductor. It is a 4-bit dual-supply translating transceiver with 3-state outputs.
