MCIMX283DVM4B Processors: Datasheet, Pinout, Diagram

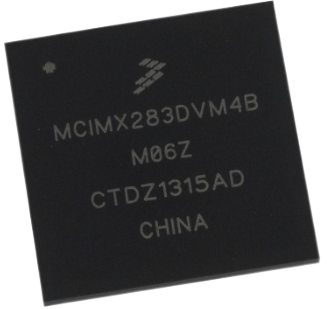

Unveiling the Embedded Processor MCIMX283DVM4B

NXP Semiconductors has long been a key player in the semiconductor industry, known for its innovative embedded processors that power a wide range of devices. Among its impressive lineup is the MCIMX283DVM4B, a versatile and powerful system-on-chip designed to meet the demands of modern embedded applications. In this article, we explore the features and capabilities of the MCIMX283DVM4B Microprocessors and delve into why it stands out in the crowded field of embedded processors.

Overview of the MCIMX283DVM4B

The MCIMX283DVM4B is part of NXP's i.MX 28 family of processors, which are optimized for low-power and cost-sensitive applications. This particular processor is built on an ARM926EJ-S core running at speeds up to 454 MHz, offering a balance of performance and power efficiency. With integrated peripherals and support for a variety of interfaces, the MCIMX283DVM4B is well-suited for a diverse range of applications, from industrial control systems to consumer electronics.

Key Features

- **ARM926EJ-S Core**: The heart of the MCIMX283DVM4B is the ARM926EJ-S core, a widely used processor design known for its versatility and efficiency. The core is capable of running a variety of operating systems, making it suitable for a broad range of applications.

- **Integrated Peripherals**: The MCIMX283DVM4B features a rich set of integrated peripherals, including USB 2.0, CAN, UART, I2C, SPI, and more. These peripherals simplify system design and reduce the need for additional components, making the processor an attractive choice for cost-sensitive designs.

- **Multimedia Capabilities**: Despite its focus on low-power applications, the MCIMX283DVM4B offers impressive multimedia capabilities, including support for LCD displays and hardware-accelerated video playback. This makes it suitable for applications that require graphical user interfaces or video processing.

- **Low Power Consumption**: One of the key strengths of the MCIMX283DVM4B is its low power consumption, making it ideal for battery-powered devices or other applications where power efficiency is critical. The processor's dynamic power management features help further reduce power consumption without sacrificing performance.

To put it another way, the features could be listed as followed:

MCIMX283DVM4B Features

LCD Controller with Touchscreen

NAND support – SLC/MLC and eMMC 4.4 managed

Hardware BCH (up to 20-bit correction)

200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support

Dual High-speed USB with embedded PHY

8 General purpose 12-bit ADC channels and a single 2 Msps ADC channel

Temperature sensor for thermal protection

MCIMX283DVM4B  Applications

The MCIMX283DVM4B is well-suited for a wide range of embedded applications, including:

- **Industrial Control Systems**: The processor's rich set of peripherals and low power consumption make it ideal for industrial control systems that require reliable and efficient processing.

- **Consumer Electronics**: From smart home devices to portable media players, the MCIMX283DVM4B can power a variety of consumer electronics products that require multimedia capabilities and low power consumption.

- **Automotive Systems**: The processor's support for interfaces like CAN and its robust performance make it a good fit for automotive applications, such as in-vehicle infotainment systems or dashboard displays.

Human-machine interface (HMI) panels: industrial, home

Industrial Drive, PLC, I/O control display, factory robotics display, graphical remote controls

Handheld scanners and printers

Patient-monitoring, portable medical devices

Smart energy meters, energy gateways

Media phones, media gateways

Block Diagram

Package

Conclusion

The MCIMX283DVM4B is a versatile and capable embedded processor that embodies NXP's commitment to innovation and quality. With its combination of performance, power efficiency, and integrated peripherals, the MCIMX283DVM4B is well-equipped to meet the demands of modern embedded applications across various industries. Whether powering industrial control systems, consumer electronics, or automotive systems, this processor offers a compelling solution for developers looking to bring their designs to life with a reliable and efficient processing platform.
