The NXP MPXxx6400A series sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make this pressure sensor a logical and economical choice for the system designer.

The MPXxx6400A series piezoresistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.

•It has Improved accuracy at high temperature

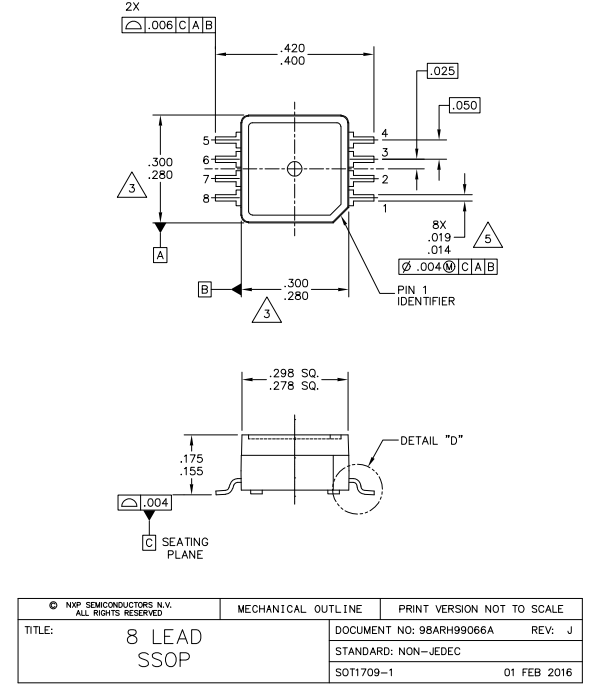

• Available in super small outline package

• 1.5% maximum error over 0 °C to 85 °C

• Fully calibrated and compensated

• Ideally suited for microprocessor or microcontroller-based systems

• Temperature compensated from -40 °C to +125 °C

• Durable thermoplastic surface mount package

• Package porting and mounting options enable tube attachment for liquefied natural gas (LPG) or remote sensing applications

• Fuel injected car engines

• Vehicles powered by green gases (for example LPG and CNG)

• Small engines

• Industrial controls

Symbol

Footprint

3D-Model

Honeywell HSC Series

TE Connectivity MS56XX Series

Sensirion SDP800 Series

Bosch BMP Series

STMicroelectronics LPS Series

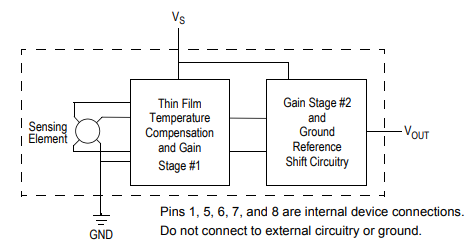

Integrated pressure sensor block diagram

The MPXHZ6400AC6T1 is a pressure sensor manufactured by NXP Semiconductors. This particular sensor is designed to measure gauge pressure and convert it into an electrical signal. Here's a general overview of how pressure sensors like the MPXHZ6400AC6T1 typically work:

1. **Basic Principle**: Pressure sensors like the MPXHZ6400AC6T1 work on the principle of piezoresistivity. This means that when pressure is applied to the sensor, it causes a mechanical deformation in the sensing element, which in turn changes the resistance of the sensor.

2. **Construction**: The MPXHZ6400AC6T1 sensor consists of a sensing element that deforms under pressure, causing a change in resistance. This change in resistance is then converted into an electrical signal that can be measured.

3. **Bridge Configuration**: Pressure sensors often use a Wheatstone bridge configuration to convert the change in resistance into a measurable voltage output. The Wheatstone bridge is a circuit that can detect very small changes in resistance.

4. **Output Signal**: As pressure changes, the resistance of the sensing element changes, causing an imbalance in the Wheatstone bridge circuit. This imbalance results in a differential voltage output that is proportional to the pressure applied to the sensor.

5. **Calibration**: Pressure sensors like the MPXHZ6400AC6T1 are calibrated to ensure accurate pressure measurements. Calibration involves determining the relationship between the pressure applied to the sensor and the corresponding output voltage.

6. **Signal Processing**: The output voltage from the sensor may need further signal conditioning or processing to make it suitable for the specific application in which the sensor is used.

In summary, the MPXHZ6400AC6T1 pressure sensor works by converting mechanical pressure into an electrical signal through changes in resistance, which is then processed to provide an accurate measurement of the applied pressure.

Advantages of MPXHZ6400AC6T1:

1.High Accuracy: Provides accurate pressure measurements for various applications.

2.Wide Pressure Range: Can measure a wide range of pressures, making it versatile for different scenarios.

3.Compact Size: Has a small form factor, making it suitable for integration into space-constrained designs.

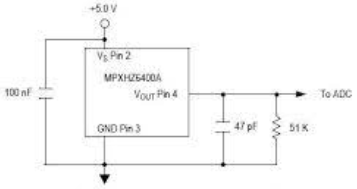

4.Analog Output: Offers a continuous analog output signal, which can be easily interfaced with microcontrollers or data acquisition systems.

Reliability: Known for its reliability and durability in harsh environments.

Disadvantages of MPXHZ6400AC6T1:

1.Temperature Sensitivity: The sensor’s accuracy can be affected by temperature variations. Calibration may be necessary to compensate for this.

2.Cost: The MPXHZ6400AC6T1 may be more expensive compared to lower-end pressure sensors, which could be a factor in cost-sensitive applications.

3.Limited Pressure Range: While the sensor has a wide pressure range, it may not cover extremely high or low pressure levels required in some specialized applications.

4.Complex Calibration: Calibration procedures may be more intricate compared to simpler pressure sensors, requiring additional effort and expertise.
