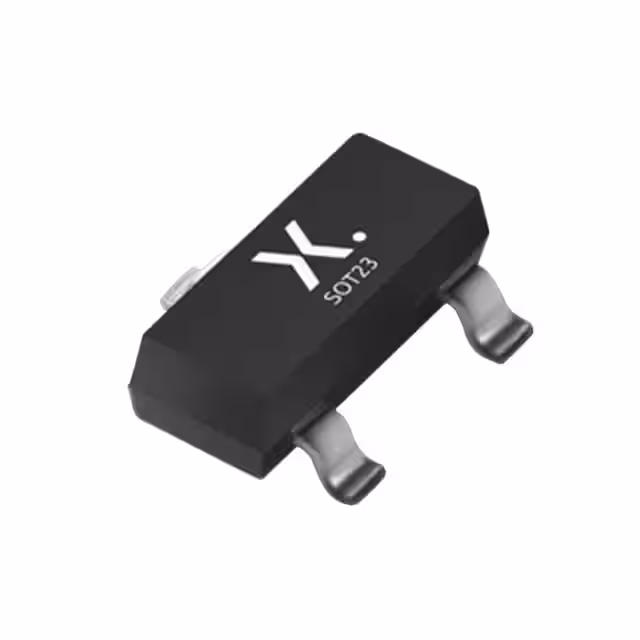

BSH205G2AR

Manufacturer :

Nexperia

Product Category :

Transistors - FETs, MOSFETs - Single

Brand :

Nexperia

Qualification :

AEC-Q101

Continuous Drain Current Id :

2.6

Manufacturer :

Nexperia

Package / Case :

TO-236-3, SC-59, SOT-23-3

Power Dissipation (Max) :

610mW (Ta), 10W (Tc)

Transistor Polarity :

P-Channel

Product Category :

MOSFET

FET Type :

P-Channel

Subcategory :

MOSFETs

Base Product Number :

BSH205

Series :

Automotive, AEC-Q101, TrenchMOS?

MSL :

MSL 1 - Unlimited

Drain to Source Voltage (Vdss) :

20 V

RoHS :

Details

Configuration :

Single

Vgs(th) (Max) @ Id :

900mV @ 250μA

Rise Time :

13 ns

Rds On (Max) @ Id, Vgs :

118mOhm @ 2.6A, 4.5V

Packaging :

MouseReel

Current - Continuous Drain (Id) @ 25°C :

2.6A (Ta)

Input Capacitance (Ciss) (Max) @ Vds :

421 pF @ 10 V

Minimum Operating Temperature :

- 55 C

Supplier Device Package :

TO-236AB

Product Type :

MOSFET

Power Dissipation :

1.3

Package :

Digi-Reel?

Channel Type :

P Channel

Mounting Type :

Surface Mount

Transistor Type :

1 P-channel Trench MOSFET

Maximum Operating Temperature :

+ 175 C

Product Status :

Active

Gate Charge (Qg) (Max) @ Vgs :

7 nC @ 4.5 V

Vgs (Max) :

±8V

FET Feature :

-

Operating Temperature :

-55°C ~ 175°C (TJ)

Channel Mode :

Enhancement

Mounting Style :

SMD/SMT

Number of Channels :

1 Channel
