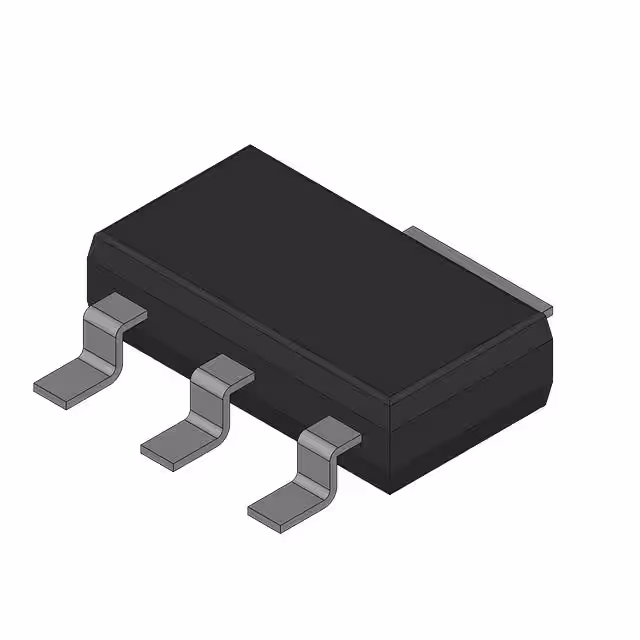

BSP295L6327

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

HTS Code :

8541.29.00.95

Pulsed Drain Current-Max (IDM) :

7.2 A

Mounting Type :

Surface Mount

Package / Case :

TO-261-4, TO-261AA

Operating Temperature :

-55°C ~ 150°C (TJ)

Operating Mode :

ENHANCEMENT MODE

Vgs(th) (Max) @ Id :

1.8V @ 400µA

Input Capacitance (Ciss) (Max) @ Vds :

368 pF @ 25 V

Transistor Element Material :

SILICON

Manufacturer :

Infineon Technologies AG

Polarity/Channel Type :

N-Channel

Channel Type :

N

Package :

Bulk

FET Type :

N-Channel

JESD-30 Code :

R-PDSO-G4

Terminal Form :

Gull wing

Product Status :

Active

Gate Charge (Qg) (Max) @ Vgs :

17 nC @ 10 V

Rds On (Max) @ Id, Vgs :

300mOhm @ 1.8A, 10V

Case Connection :

DRAIN

Terminal Finish :

MATTE TIN

Technology :

MOSFET (Metal Oxide)

Continuous Drain Current Id :

1.8

Drain to Source Voltage (Vdss) :

60 V

Subcategory :

FET General Purpose Power

Power Dissipation-Max (Abs) :

1.8 W

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Vgs (Max) :

±20V

Pin Count :

4

Series :

SIPMOS®

Surface Mount :

yes

JESD-609 Code :

e3

Terminal Position :

Dual

Package Shape :

RECTANGULAR

ECCN Code :

EAR99

Number of Elements :

1

Configuration :

SINGLE WITH BUILT-IN DIODE

Supplier Device Package :

PG-SOT223-4-21

Current - Continuous Drain (Id) @ 25°C :

1.8A (Ta)

Power Dissipation (Max) :

1.8W (Ta)

FET Feature :

-

DS Breakdown Voltage-Min :

60 V

Drain-source On Resistance-Max :

0.5 Ω

Number of Terminals :

4

Reach Compliance Code :

Compliant

Drive Voltage (Max Rds On, Min Rds On) :

4.5V, 10V

Qualification Status :

Not Qualified

Drain Current-Max (Abs) (ID) :

1.8 A
