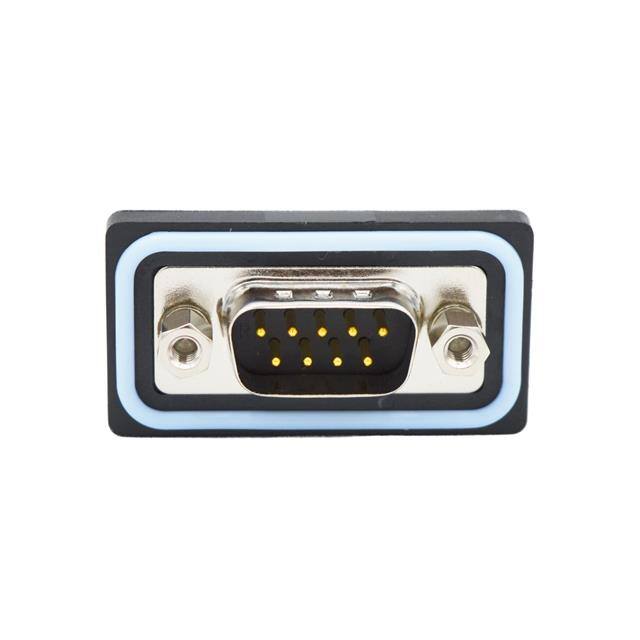

SDF-R09-113L011

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

IP Rating :

IP67

Shell Plating :

Nickel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Connector Style :

D-Sub

Tradename :

NANOOK

Filter Type :

-

Flange Feature :

Mating Side, Female Screwlock (4-40)

Body Orientation :

RIGHT ANGLE

Insulation Material :

Polybutylene Terephthalate (PBT)

Backset Spacing :

-

Maximum Operating Temperature :

+ 85 C

Contact Finish :

Gold

Wire Gauge :

-

Shell Size :

1 (E)

Mounting Style :

Flange

Voltage Rating :

-

Contact Finish Thickness :

Flash

Mounting Type :

PCB Mount

Number of Contacts :

9

Number of Rows :

2 Row

Pitch :

2.74mm

Contact Form :

Machined

Minimum Operating Temperature :

- 25 C

Contact Gender :

Pin (Male)

Contact Material :

Brass

Features :

Grounding Indents

Base Product Number :

SDF-R09

Packaging :

Tray

Product Status :

Active

Package :

Tray

Connector Type :

Plug, Male Pins

Termination :

Solder

Dielectric Material :

Polybutylene Terephthalate (PBT)

Shell Material :

Steel

Series :

SDF

Mounting Hardware :

4-40 Screw Locks, Threaded Inserts

RoHS :

Details

Mounting Angle :

RIGHT ANGLE

Shell Material, Finish :

Steel, Nickel Plated

Current Rating (Amps) :

5A

Operating Temperature :

-25°C ~ 85°C

Contact Type :

Signal

Termination Style :

Solder Pin

Material Flammability Rating :

UL94 V-0

Type :

PLUG

Current Rating :

5 A

Gender :

Male

Number of Positions :

9 Position

Contact Plating :

Gold

Shell Size, Connector Layout :

1 (DE, E)

Color :

Black
