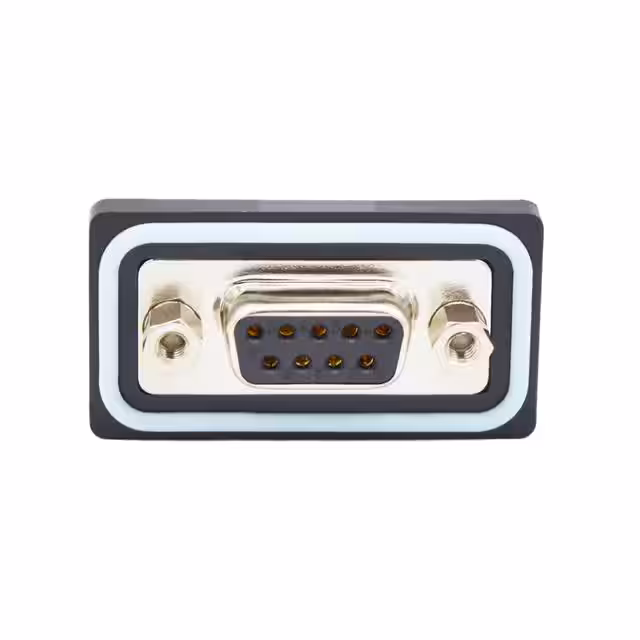

SDF-R09-213L462

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Contact Finish Thickness :

30.0µin (0.76µm)

Termination :

Solder

Wire Gauge :

-

Voltage Rating :

-

Connector Style :

D-Sub

Minimum Operating Temperature :

- 25 C

Shell Material, Finish :

Steel, Nickel Plated

Contact Plating :

Gold

Maximum Operating Temperature :

+ 85 C

Material Flammability Rating :

UL94 V-0

Mounting Type :

Panel Mount, Through Hole, Right Angle

Operating Temperature :

-25°C ~ 85°C

Mounting Style :

Panel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Series :

SDF

Number of Positions :

9 Position

Contact Type :

Signal

Packaging :

Tray

Package :

Tray

Backset Spacing :

-

Contact Finish :

Gold

Filter Type :

-

Current Rating :

5 A

IP Rating :

IP67

Connector Type :

Receptacle, Female Sockets

Dielectric Material :

Polybutylene Terephthalate (PBT)

Termination Style :

Solder Pin

Current Rating (Amps) :

5A

Shell Size, Connector Layout :

1 (DE, E)

Mounting Angle :

RIGHT ANGLE

Tradename :

NANOOK

Base Product Number :

SDF-R09

Number of Rows :

2 Row

Shell Material :

Steel

Features :

Board Lock, Mounting Brackets

Color :

Black

Product Status :

Active

RoHS :

Details

Shell Plating :

Nickel

Flange Feature :

Mating Side, Female Screwlock (4-40)

Contact Form :

Machined

Contact Material :

Brass

Insulation Material :

Polybutylene Terephthalate (PBT)
