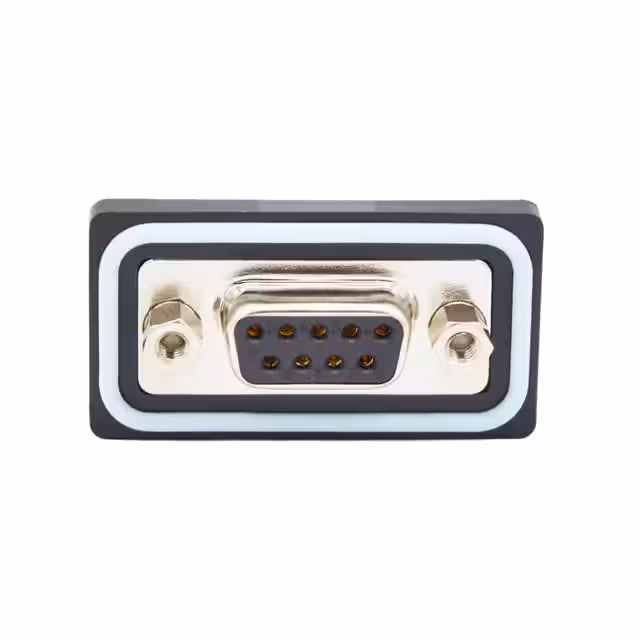

SDF-R09-213L461

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

RoHS :

Details

Body Orientation :

RIGHT ANGLE

Dielectric Material :

Polybutylene Terephthalate (PBT)

Gender :

FEMALE

Mounting Type :

PCB Mount

Mounting Style :

Flange

Contact Gender :

Socket (Female)

Features :

Board Lock, Mounting Brackets

Filter Type :

-

Mounting Hardware :

4-40 Boardlocks, Brackets

Current Rating :

5 A

Type :

Receptacle

IP Rating :

IP67

Connector Style :

D-Sub

Shell Size :

1 (E)

Maximum Operating Temperature :

+ 85 C

Termination :

Solder

Contact Finish Thickness :

Flash

Packaging :

Tray

Shell Size, Connector Layout :

1 (DE, E)

Pitch :

2.74mm

Wire Gauge :

-

Termination Style :

Solder Pin

Flange Feature :

Mating Side, Female Screwlock (4-40)

Number of Contacts :

9

Contact Type :

Signal

Shell Material :

Steel

Base Product Number :

SDF-R09

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Form :

Machined

Shell Plating :

Nickel

Ingress Protection :

IP67 - Dust Tight, Waterproof

Series :

SDF

Contact Finish :

Gold

Contact Material :

Brass

Package :

Tray

Shell Material, Finish :

Steel, Nickel Plated

Product Status :

Active

Mounting Angle :

RIGHT ANGLE

Number of Rows :

2 Row

Number of Positions :

9 Position

Color :

Black

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-25°C ~ 85°C

Voltage Rating :

-

Backset Spacing :

-

Connector Type :

Receptacle, Female Sockets

Current Rating (Amps) :

5A

Contact Plating :

Gold

Tradename :

NANOOK

Minimum Operating Temperature :

- 25 C
