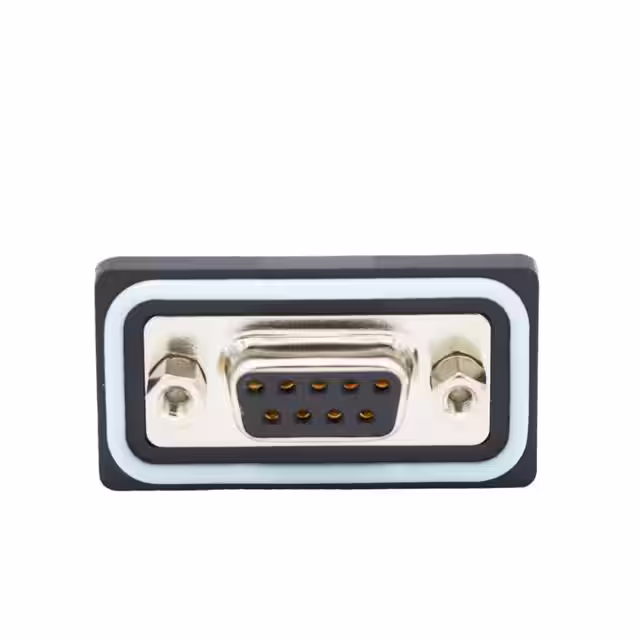

SDF-R09-213L012

Manufacturer :

NorComp

Product Category :

D-Sub Connector Assemblies

Tradename :

NANOOK

Wire Gauge :

-

Number of Positions :

9 Position

Voltage Rating :

-

Shell Material :

Steel

Termination Style :

Solder Pin

Ingress Protection :

IP67 - Dust Tight, Waterproof

Current Rating (Amps) :

5A

Series :

SDF

Contact Plating :

Gold

Features :

-

Contact Form :

Machined

Mounting Style :

Panel

Product Status :

Active

Operating Temperature :

-25°C ~ 85°C

Shell Plating :

Nickel

Mounting Angle :

RIGHT ANGLE

Filter Type :

-

Contact Type :

Signal

Connector Type :

Receptacle, Female Sockets

Backset Spacing :

-

Shell Material, Finish :

Steel, Nickel Plated

Contact Finish :

Gold

Dielectric Material :

Polybutylene Terephthalate (PBT)

Packaging :

Tray

Insulation Material :

Polybutylene Terephthalate (PBT)

Base Product Number :

SDF-R09

Maximum Operating Temperature :

+ 85 C

Contact Material :

Brass

Current Rating :

5 A

Flange Feature :

Mating Side, Female Screwlock (4-40)

Shell Size, Connector Layout :

1 (DE, E)

RoHS :

Details

Material Flammability Rating :

UL94 V-0

Package :

Tray

Contact Finish Thickness :

30.0µin (0.76µm)

Termination :

Solder

Connector Style :

D-Sub

Mounting Type :

Panel Mount, Through Hole, Right Angle

IP Rating :

IP67

Number of Rows :

2 Row

Minimum Operating Temperature :

- 25 C

Color :

Black
