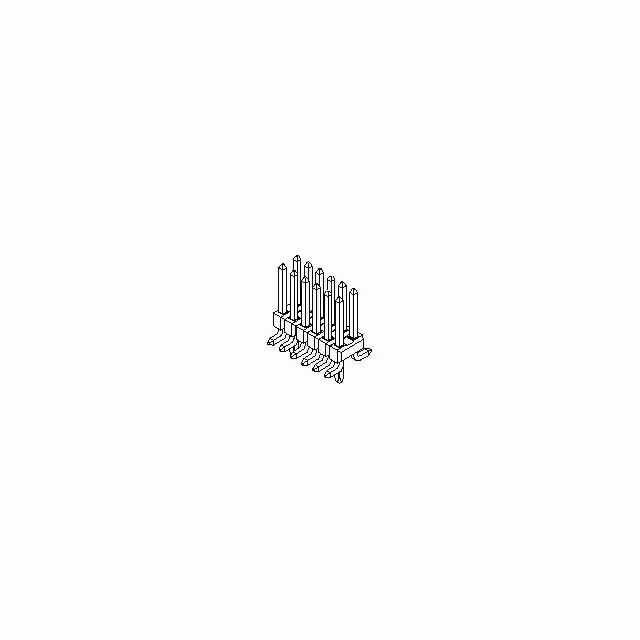

15-91-1302

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Type :

BOARD

Number of Positions :

30

Min Operating Temperature :

-40 °C

Lifecycle Status :

Production (Last Updated: 2 years ago)

DIN Conformance :

No

Product Depth (mm) :

5.08(mm)

Number of Circuits :

30

Subcategory :

Headers and Wire Housings

Mounting Angle :

Straight

Option :

GENERAL PURPOSE

Gender :

HDR

Minimum Operating Temperature :

- 40 C

Contact Type :

-

Material :

Bronze

Number of Contacts :

30(POS)

Pitch :

2.54 mm

Max Operating Temperature :

105 °C

Mating Contact Row Spacing :

0.1 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Packaging :

Tube

Product Height (mm) :

9.66(mm)

IEC Conformance :

No

Product :

Headers

Rated Current (Signal) :

2.5 A

Terminal Pitch :

2.54 mm

Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Pitch (mm) :

2.54(mm)

Reliability :

COMMERCIAL

Pbfree Code :

yes

Plating Thickness :

15u inch

Series :

71308

Country of Origin :

US

MIL Conformance :

No

Termination Style :

Solder

Body Depth :

0.09 inch

Total Number of Contacts :

30

Row Spacing :

2.54 mm

Termination :

Solder

Manufacturer :

Molex

Accessory Type :

-

Product Length (mm) :

38.1(mm)

Voltage Rating Max :

250V

Body Orientation :

Straight

Tradename :

C-Grid

Max Voltage Rating (DC) :

250.25 kV

Termination Method :

Solder

Flammability Rating :

UL94 V-0

Body/Shell Style :

Receptacle

Contact Gender :

Pin (Male)

Contact Plating :

Gold Over Nickel

Additional Feature :

C-Grid

Filter Feature :

No

Mixed Contacts :

No

Type :

Unshrouded Header

Number of Rows :

2

Glow Wire Compliant :

Non-Compliant

Voltage Rating :

250 V

Termination Type :

Surface Mount

Number Of PCB Rows :

2

Maximum Operating Temperature :

+ 105 C

Current Rating :

3 A

Reach Compliance Code :

Compliant

Flammability :

94V-0

Reference Standard :

UL, CSA

Product Status :

Active

Body Breadth :

0.2 inch

Contact Material :

Phosphor Bronze

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Contact Resistance Max :

15(mohm)

RoHS :

Compliant

Product Type :

Headers and Wire Housings

Contact Resistance :

15 mΩ

Mating Contact Pitch :

0.1 inch

Plating :

Tin

Connector Type :

BOARD CONNECTOR

Package :

Box

Application :

Board-to-Board

ELV :

Compliant

Brand :

Molex

Operating Temp Range :

-40C to 105C

Housing Color :

Black

Orientation :

Vertical

Mating Post Length :

6.1 mm

Insulator Color :

Black

PCB Contact Pattern :

RECTANGULAR

Board Mounting Option :

SOLDER HOLDING POSTS

Mount :

Surface Mount

Product Category :

Headers and Wire Housings

Number of Contact Rows :

2

Mounting Style :

Surface Mount

Housing Material :

Thermoplastic

Contact Style :

SQ PIN-SKT

Current Rating (Max) :

3/Contact(A)

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0
