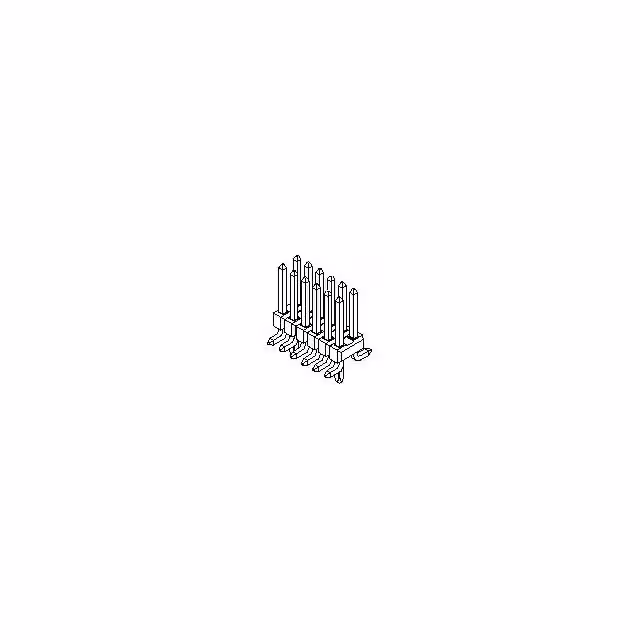

15-91-3120

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Current Rating :

3 A

Row Spacing :

2.54 mm

Termination :

Solder

Product :

Headers

Voltage Rating :

250 V

Min Operating Temperature :

-40 °C

Pitch :

2.54 mm

MIL Conformance :

No

Mounting Angle :

Straight

Number of Circuits :

12

IEC Conformance :

No

Number of Contact Rows :

2

Housing Color :

Black

Insulator Color :

Black

Product Length (mm) :

15.24(mm)

Flammability Rating :

UL94 V-0

Termination Style :

Solder

Subcategory :

Headers and Wire Housings

Contact Gender :

Male

Mating Contact Pitch :

0.1 inch

Body/Shell Style :

Receptacle

Connector Type :

BOARD CONNECTOR

Rated Current (Signal) :

2.5 A

Glow Wire Compliant :

Non-Compliant

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Flammability :

94V-0

Product Type :

Headers and Wire Housings

Mounting Style :

Surface Mount

Number of Positions :

12

Body Breadth :

0.2 inch

Total Number of Contacts :

12

Terminal Pitch :

2.54 mm

Body Depth :

0.09 inch

Termination Type :

Surface Mount

Contact Style :

SQ PIN-SKT

Material :

Bronze

Series :

*

Reference Standard :

UL, CSA

Mating Contact Row Spacing :

0.1 inch

Operating Temp Range :

-40C to 105C

Halogen Free :

Low Halogen

Max Operating Temperature :

105 °C

Contact Resistance Max :

30(mohm)

Mixed Contacts :

No

Filter Feature :

No

HTS Code :

8536.69.40.40

Brand :

Molex

Minimum Operating Temperature :

- 40 C

Packaging :

Tube

Contact Plating :

Gold Over Nickel

Current Rating (Max) :

3/Contact(A)

Product Category :

Headers and Wire Housings

Voltage Rating Max :

250V

Type :

Unshrouded Header

Number of Contacts :

12(POS)

UL Flammability Code :

94V-0

DIN Conformance :

No

Application :

Board-to-Board

Contact Type :

-

Number Of PCB Rows :

2

Package :

Box

Number of Rows :

1

Contact Resistance :

15 mΩ

Termination Method :

Solder

Mating Information :

7859

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

C-Grid

Plating Thickness :

30u inch

Orientation :

Vertical

Accessory Type :

-

Contact Pattern :

RECTANGULAR

Product Height (mm) :

9.66(mm)

Lead Pitch :

2.54 mm

Mounting Type :

BOARD

Tradename :

C-Grid

Reliability :

COMMERCIAL

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Mount :

Surface Mount

Product Depth (mm) :

6.99(mm)

Max Voltage Rating (DC) :

250.25 kV

ELV :

Compliant

Gender :

HDR

Contact Material :

Phosphor Bronze

Pitch (mm) :

2.54(mm)

RoHS :

Compliant

Housing Material :

Polymer

Mating Post Length :

6.1 mm

Body Orientation :

Straight

Manufacturer :

Molex

Pbfree Code :

yes

Reach Compliance Code :

Compliant
