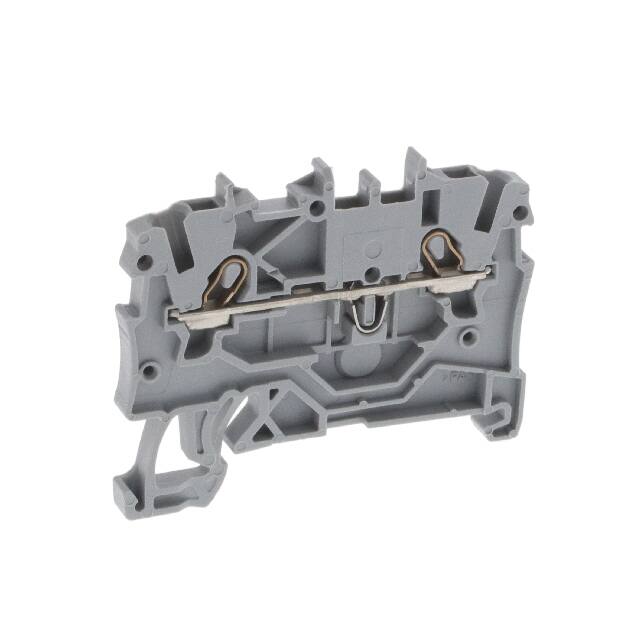

2000-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Rated Current :

18A

Nominal current - rounded value :

13.5A

Mounting Style :

T DIN RAIL

Min. stripping length :

10mm

Stripping Length :

9mm ~ 11mm

Housing Color :

Gray

Product Length (mm) :

48.5(mm)

Type :

Standard Block

Disconnect Type :

-

Current - IEC :

17.5 A

Product Depth (mm) :

3.5(mm)

Operating Voltage (Max) :

800V

Base Product Number :

2000-120

Terminal - Width :

3.5mm

Nominal voltage :

800V

Clamp width :

3.50mm

Width :

3.50mm

Cross section (inflexible) (max.) :

1.50mm²

Rad Hardened :

No

Pitch :

3.5mm

Product Height (mm) :

33(mm)

Current Rating :

13.5 → 18A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Manufacturer :

Wago

Manufacturer part # :

2000-1201

Series :

2000

Voltage - IEC :

800V

Rated Voltage :

800V

Features :

-

Current Rating (Max) :

18(A)

Package :

Bulk

RoHS :

yes

Nominal current (details) :

13.5 A (18 A with flexible ladders)

Configuration :

L

Current - UL :

15 A

AWG max. :

16

Approvals :

CSA, UR

No. of rows :

1

Color :

Gray

Cross section (flexible) (max.) :

1.50mm²

Voltage - UL :

600V

Content :

1pc(s)

Wire Gauge :

16-24(AWG)

Termination Method :

Clamp

Number of Contact Rows :

2

Mounting Type :

DIN Rail

Nominal current :

13.5A

Cross section (inflexible) (min.) :

0.14mm²

Contact Pitch (mm) :

Not Required(mm)

Wire Gauge or Range - AWG :

16-20 AWG

Product Status :

Active

Material Flammability Rating :

-

Number of Positions :

2

Wire Gauge or Range - mm² :

0.5-1.5mm²

Number of Circuits :

1

AWG (min.) :

24

Housing Material :

Polyamide 6/6

Pins per row :

2

Number of Levels :

1

Fuse Type :

-

Number of Contacts :

2(POS)

Connection :

Pull spring

Stripping length (max.) :

12mm

Termination Style :

Push In, Spring

Cross section (flexible) (min.) :

0.14mm²

Packaging :

Box

Voltage Rating :

800 V
