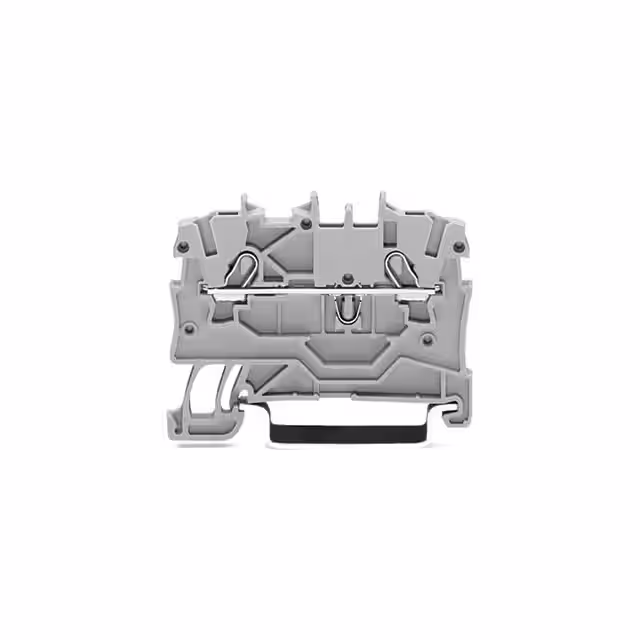

2000-1202

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Rated current In :

13.5

Type :

Standard Block

Product Status :

Active

Wire Gauge or Range - AWG :

16-24 AWG

Wire Gauge or Range - mm² :

0.14-1.5mm²

Termination Style :

Push In, Spring

Voltage - IEC :

800V

Length :

48.5

Terminal - Width :

3.5mm

PPAP :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

RoHS :

yes

Depth :

32.9

Features :

-

Number of Levels :

1

Automotive :

No

ECCN (US) :

EAR99

Material Flammability Rating :

UL94 V-0

Current - UL :

15 A

Package :

Box

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

HTS :

8536.90.40.00

Number of Positions :

2

Manufacturer :

Wago

EU RoHS :

Compliant

Voltage - UL :

600V

Color :

Orange

Connectable conductor cross section solid-core :

0.5 - 1.5

Number of Circuits :

1

Stripping Length :

9mm ~ 11mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Current - IEC :

17.5 A

Connectable conductor cross section multi-wired :

0.14 - 1

Disconnect Type :

-

Height :

48.5

Fuse Type :

-

Series :

TOPJOB®S

Inflammability class of insulation material according to with UL94 :

V0

Approvals :

CSA, UR

Width :

3.5
