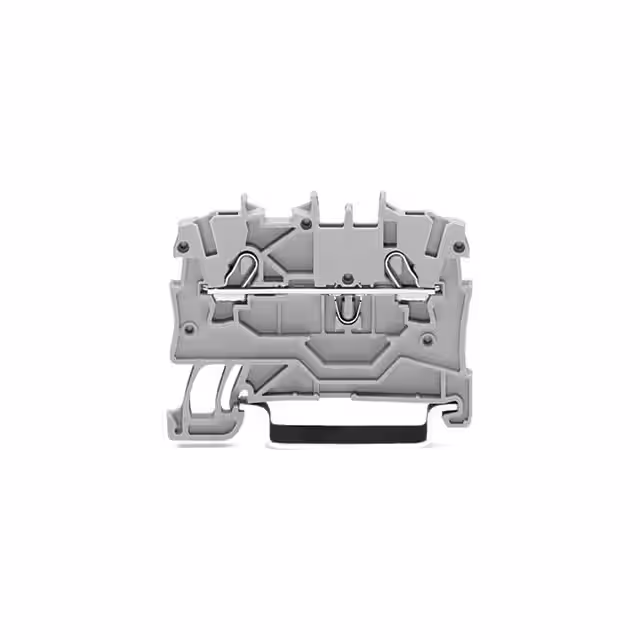

2000-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Nominal current (details) :

13.5 A (18 A with flexible ladders)

Stripping length (max.) :

12mm

AWG max. :

16

Stripping Length :

9mm ~ 11mm

Product Status :

Active

Clamp width :

3.50mm

Termination Style :

Push In, Spring

Connectable conductor cross section solid-core :

0.5 - 1.5

Nominal voltage :

800V

Cross section (inflexible) (min.) :

0.14mm²

Rated Current :

18A

Cross section (flexible) (min.) :

0.14mm²

Voltage Rating :

800 V

Current - UL :

15 A

Min. stripping length :

10mm

Rated Voltage :

800V

Number of Circuits :

1

Cross section (inflexible) (max.) :

1.50mm²

Pins per row :

2

Depth :

32.9

Features :

-

Content :

1pc(s)

Material Flammability Rating :

UL94 V-0

Type :

Standard Block

Manufacturer :

Wago

Series :

2000

Number of Levels :

1

Voltage - IEC :

800V

Fuse Type :

-

No. of rows :

1

Number of Positions :

2

Wire Gauge or Range - mm² :

0.14-1.5mm²

Cross section (flexible) (max.) :

1.50mm²

Voltage - UL :

600V

Package :

Box

Nominal current :

13.5A

Width :

3.50mm

Current Rating :

13.5 → 18A

Height :

48.5

Rated current In :

13.5

Approvals :

CSA, UR

Disconnect Type :

-

Color :

Blue

Connectable conductor cross section multi-wired :

0.14 - 1

Current - IEC :

17.5 A

Configuration :

N

Termination Method :

Clamp

Mounting Type :

DIN Rail

Pitch :

3.5mm

Wire Gauge or Range - AWG :

16-24 AWG

Length :

48.5

Terminal - Width :

3.5mm

Manufacturer part # :

2000-1204

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current - rounded value :

13.5A

AWG (min.) :

24

Connection :

-

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0
