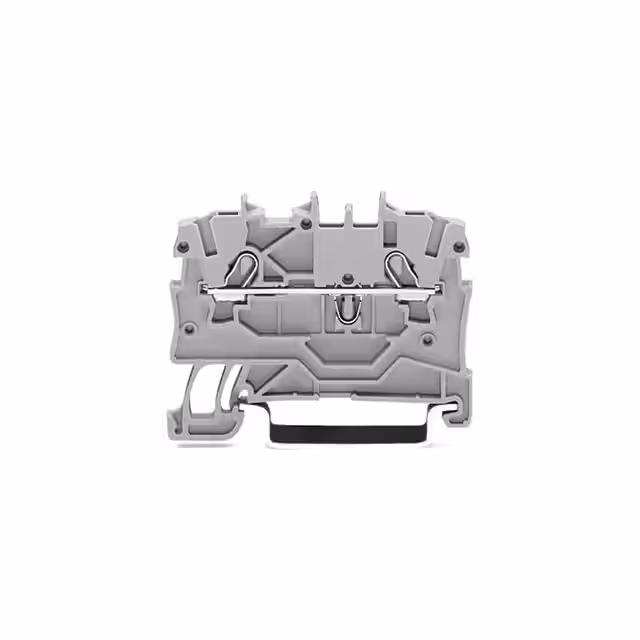

2000-1205

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

HTS :

8536.90.40.00

Series :

TOPJOB®S

Maximum Operating Temperature (°C) :

105

ECCN (US) :

EAR99

Rad Hardened :

No

Product Depth (mm) :

48.5

Type :

Feed-Through Terminal Block

Stripping Length :

9mm ~ 11mm

PPAP :

No

Terminal - Width :

3.5mm

Package :

Box

Disconnect Type :

-

Manufacturer :

Wago

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Housing Color :

Black

Termination Method :

Spring Clamp

Minimum Operating Temperature (°C) :

-60

Mounting Type :

DIN Rail

Wire Gauge :

16-24(AWG)

Automotive :

No

Features :

-

Mounting Style :

Din-Rail

Number of Contacts :

2

Product Height (mm) :

32.9

Product Length (mm) :

3.5

Housing Material :

Polyamide 6/6

Product Status :

Active

Flammability Rating :

UL94 V-0

Approvals :

UR;CSA

Maximum Current Rating (A) :

15

RoHS :

yes

Current Rating (Max) :

15(A)

Termination Style :

Push In, Spring

Maximum Voltage Rating :

600V

Number of Circuits :

1

Number of Levels :

1

Number of Contact Rows :

2

Packaging :

Box

Color :

Black

Number of Positions :

2

EU RoHS :

Compliant

Wire Gauge or Range - mm² :

0.14-1.5mm²

Operating Voltage (Max) :

600V

Voltage - UL :

600V

Voltage - IEC :

800V

Fuse Type :

-

Wire Gauge or Range - AWG :

16-24 AWG

Current - IEC :

17.5 A

Current - UL :

15 A

Mounting :

DIN Rail

Number of Rows :

2

Material Flammability Rating :

UL94 V-0
