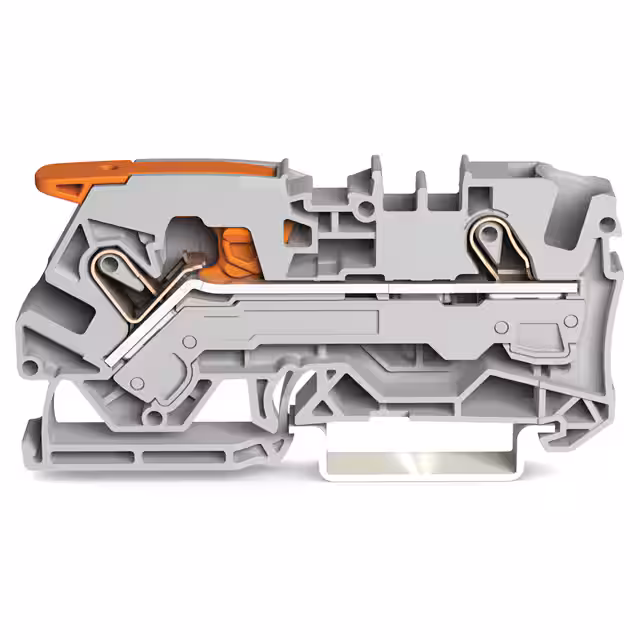

2106-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Voltage Rating :

800 V

Voltage - IEC :

800V

Pitch :

7.5mm

Current - IEC :

55 A

Termination Method :

Clamp

Material Flammability Rating :

UL94 V-0

Current Rating :

57A

Length :

74.80mm

Number of Circuits :

1

Width :

7.50mm

Nominal current :

41A

Depth :

32.9

Stripping Length :

13mm ~ 15mm

AWG (min.) :

20

Inflammability class of insulation material according to with UL94 :

V0

Voltage - UL :

600V

Manufacturer part # :

2106-1201

Product Status :

Active

Stripping length (max.) :

15mm

Height :

32.90mm

Package :

Box

Rated Voltage :

800V

Industrial packaging :

yes

AWG max. :

8

Number of Positions :

2

Content :

25pc(s)

Cross section (flexible) (min.) :

0.50mm²

Connectable conductor cross section solid-core :

1 - 10

Cross section (inflexible) (max.) :

10mm²

Min. stripping length :

13mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Clamp width :

7.50mm

Fuse Type :

-

Approvals :

UL

Manufacturer :

Wago

Series :

2106

Wire Gauge or Range - AWG :

8-20 AWG

Nominal current - rounded value :

41A

No. of rows :

1

Wire Gauge or Range - mm² :

0.5-10mm²

Current - UL :

50 A

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 6

Nominal voltage :

800V

Connectable conductor cross section multi-wired :

0.5 - 6

Cross section (inflexible) (min.) :

0.50mm²

Rated current In :

41

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 10

Minimum Operating Temperature :

-35°C

Termination Style :

Push In, Spring

RoHS :

yes

Rated Current :

41A

Cross section (flexible) (max.) :

6mm²

Connection :

Push-in connector

Pins per row :

2

Mounting Type :

DIN Rail

Standards Met :

CCA, cURus, Ex, IECEx, KEMA/KEUR

Terminal - Width :

7.5mm

Number of Levels :

Single

Disconnect Type :

-

Features :

+ CAGE CLAMP®,+ lever

Color :

Gray

Type :

Standard Block

Dim :

(L x W x H) 74.80 x 7.50 x 32.90 mm

Maximum Operating Temperature :

+105°C
