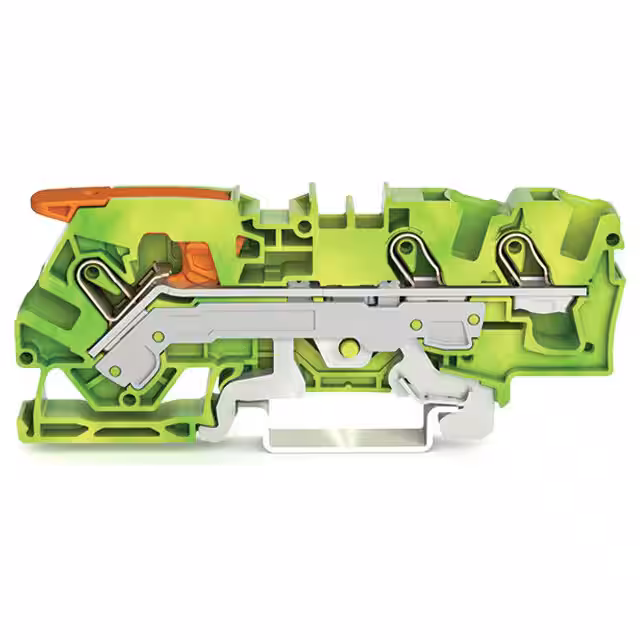

2106-1307

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal current :

41A

Clamp width :

7.50mm

Fuse Type :

-

Number of Levels :

Single

Rated Current :

41A

Maximum Operating Temperature :

+105°C

Standards Met :

CCA, cURus, Ex, IECEx, KEMA/KEUR

Type :

Grounding Block

Termination Method :

Clamp

Rated Voltage :

800V

Number of Circuits :

1

Package :

Box

Cross section (inflexible) (min.) :

0.50mm²

Product Status :

Active

Stripping length (max.) :

15mm

Voltage - UL :

-

Length :

90.80mm

Material Flammability Rating :

UL94 V-0

AWG max. :

8

No. of rows :

1

AWG (min.) :

20

RoHS :

yes

Wire Gauge or Range - mm² :

0.5-10mm²

Manufacturer part # :

2106-1307

Industrial packaging :

yes

Nominal current - rounded value :

41A

Terminal - Width :

7.5mm

Color :

Green-Yellow

Manufacturer :

Wago

Content :

25pc(s)

Min. stripping length :

13mm

Mounting Type :

DIN Rail

Termination Style :

Push In, Spring

Wire Gauge or Range - AWG :

8-20 AWG

Cross section (flexible) (max.) :

6mm²

Connection :

Push-in connector

Pins per row :

3

Approvals :

UL

Height :

32.90mm

Features :

+ CAGE CLAMP®,+ lever

Cross section (inflexible) (max.) :

10mm²

Cross section (flexible) (min.) :

0.50mm²

Number of Positions :

3

Stripping Length :

13mm ~ 15mm

Width :

7.50mm

Disconnect Type :

-

Pitch :

7.5mm

Minimum Operating Temperature :

-35°C

Series :

2106

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - IEC :

-

Dim :

(L x W x H) 90.80 x 7.50 x 32.90 mm
