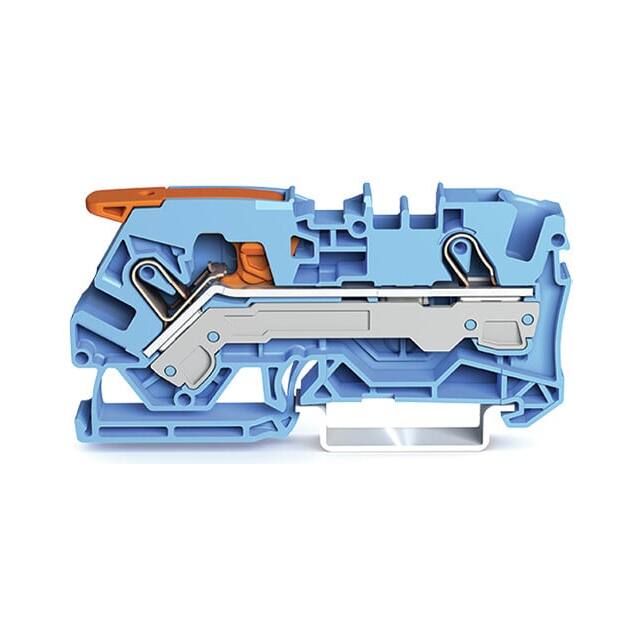

2106-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section solid-core :

1 - 10

Rated Current :

41A

Product Status :

Active

Cross section (inflexible) (min.) :

0.50mm²

Termination Method :

Clamp

Maximum Operating Temperature :

+105°C

AWG max. :

8

Pins per row :

2

Height :

32.90mm

Current Rating :

57A

Depth :

32.9

AWG (min.) :

20

Terminal - Width :

7.5mm

No. of rows :

1

Number of Levels :

Single

Connectable conductor cross section multi-wired :

0.5 - 6

Package :

Box

Series :

2106

Clamp width :

7.50mm

Wire Gauge or Range - mm² :

0.5-10mm²

Rated Voltage :

800V

RoHS :

yes

Current - IEC :

55 A

Termination Style :

Push In, Spring

Length :

32.90mm

Nominal current - rounded value :

41A

Minimum Operating Temperature :

-35°C

Type :

Standard Block

Manufacturer :

Wago

Fuse Type :

-

Number of Positions :

2

Voltage Rating :

800 V

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 10

Industrial packaging :

yes

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 6

Features :

+ CAGE CLAMP®,+ lever

Disconnect Type :

-

Content :

25pc(s)

Number of Circuits :

1

Cross section (flexible) (max.) :

6mm²

Voltage - UL :

600V

Cross section (inflexible) (max.) :

10mm²

Stripping length (max.) :

15mm

Color :

Blue

Standards Met :

CCA, cURus, Ex, IECEx, KEMA/KEUR

Voltage - IEC :

800V

Cross section (flexible) (min.) :

0.50mm²

Dim :

(L x W x H) 32.90 x 7.50 x 32.90 mm

Manufacturer part # :

2106-1204

Material Flammability Rating :

UL94 V-0

Width :

7.50mm

Wire Gauge or Range - AWG :

8-20 AWG

Min. stripping length :

13mm

Current - UL :

50 A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current :

41A

Inflammability class of insulation material according to with UL94 :

V0

Connection :

Push-in connector

Stripping Length :

13mm ~ 15mm

Rated current In :

41

Mounting Type :

DIN Rail

Pitch :

7.5mm

Approvals :

UL

Nominal voltage :

800V
