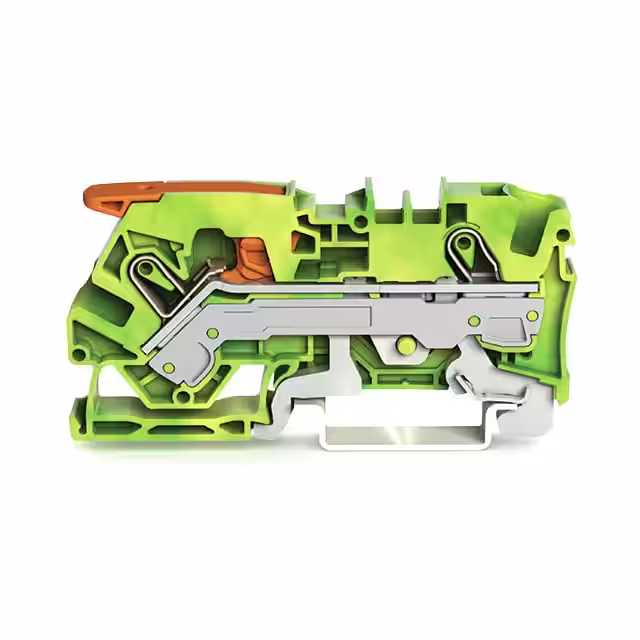

2106-1207

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Approvals :

UL

Clamp width :

7.50mm

Fuse Type :

-

Content :

25pc(s)

Number of Positions :

2

Package :

Box

Termination Method :

Clamp

Rated Current :

41A

Series :

2106

Nominal current :

41A

Min. stripping length :

13mm

Manufacturer part # :

2106-1207

Depth :

32.9

Dim :

(L x W x H) 32.90 x 7.50 x 32.90 mm

Pins per row :

2

Wire Gauge or Range - mm² :

0.5-10mm²

Disconnect Type :

-

Cross section (inflexible) (min.) :

0.50mm²

No. of rows :

1

Connection :

Push-in connector

Stripping length (max.) :

15mm

Stripping Length :

13mm ~ 15mm

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.50mm²

Terminal - Width :

7.5mm

RoHS :

yes

Width :

7.50mm

Maximum Operating Temperature :

+105°C

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 10

Connectable conductor cross section multi-wired :

0.5 - 6

Standards Met :

CCA, cURus, Ex, IECEx, KEMA/KEUR

Cross section (inflexible) (max.) :

10mm²

Termination Style :

Push In, Spring

Type :

Grounding Block

Inflammability class of insulation material according to with UL94 :

V0

Mounting Type :

DIN Rail

Height :

32.90mm

Color :

Green-Yellow

Material Flammability Rating :

UL94 V-0

Number of Circuits :

1

Pitch :

7.5mm

Length :

32.90mm

AWG (min.) :

20

Nominal current - rounded value :

41A

Number of Levels :

Single

Minimum Operating Temperature :

-35°C

Features :

+ CAGE CLAMP®,+ lever

Voltage - IEC :

-

Rated Voltage :

800V

Industrial packaging :

yes

AWG max. :

8

Product Status :

Active

Wire Gauge or Range - AWG :

8-20 AWG

Cross section (flexible) (max.) :

6mm²

Connectable conductor cross section solid-core :

1 - 10

Voltage - UL :

-

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 6
