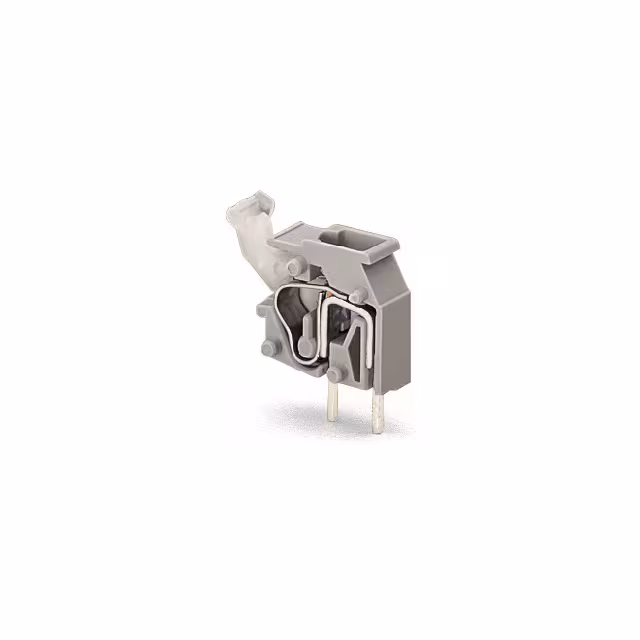

255-401

Manufacturer :

WAGO

Product Category :

Wire to Board

Pitch :

-

Product Depth (mm) :

5(mm)

Current Rating (Max) :

24(A)

Stripping length (max.) :

6mm

Number of Levels :

1

Width :

18.30mm

Approvals :

CSA;UL

Voltage :

300 V

Cross section (inflexible) (min.) :

0.08mm²

Composition :

Polyamide

Pin Length :

4 MilliMeters

Type :

PCB terminal block 1P/2pins 24A RM5/5,08 grey

Manufacturer :

Wago

Housing Material :

Polyamide 6/6

Rated Voltage :

500V

RoHS :

yes

Cross section (flexible) (max.) :

2.50mm²

Screw Material - Plating :

-

Wire Termination :

Screwless - Push Button Clamp

AWG max. :

12

Length :

7.80mm

Product Height (mm) :

14.2(mm)

No. of rows :

1

Connection :

Spring-loaded terminal,Print

Product Status :

Active

Number of Poles :

1

Operating Temp Range :

-60C to 105C

Contact Pitch (mm) :

Not Required(mm)

Product Length (mm) :

18.3(mm)

Clamp Material - Plating :

Steel - Nickel Plated

Industrial packaging :

yes

Positions Per Level :

1

Pins per row :

1

Wire Gauge :

12-28(AWG)

Color :

Gray

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Cross section (inflexible) (max.) :

2.50mm²

Wire protection :

yes

Nominal voltage :

320V

Height :

18.20mm

Torque - Screw :

-

Current :

15 A

Rated Current :

16A

Number of Contacts :

1(POS)

Rad Hardened :

No

Content :

500pc(s)

Operating Voltage (Max) :

320V

Mounting Type :

PCB Mount

Mating Orientation :

Vertical with Board

Contact Material :

Electrolytic Copper

Temperature Range :

-76 to 221 Degrees F

Mounting Style :

Through Hole

CS :

5mm,5.08mm

Features :

+ CAGE CLAMP®

Connection Type :

Spring Clamp

Operating Temperature :

-60°C ~ 105°C

Housing Color :

Gray

AWG (min.) :

28

Number of Contact Rows :

1

Series :

255

Contact Plating :

Tin

Screw Thread :

-

Cross section (flexible) (min.) :

0.08mm²

Packaging :

Box

Min. stripping length :

6mm

Package :

Box

Manufacturer part # :

255-401
