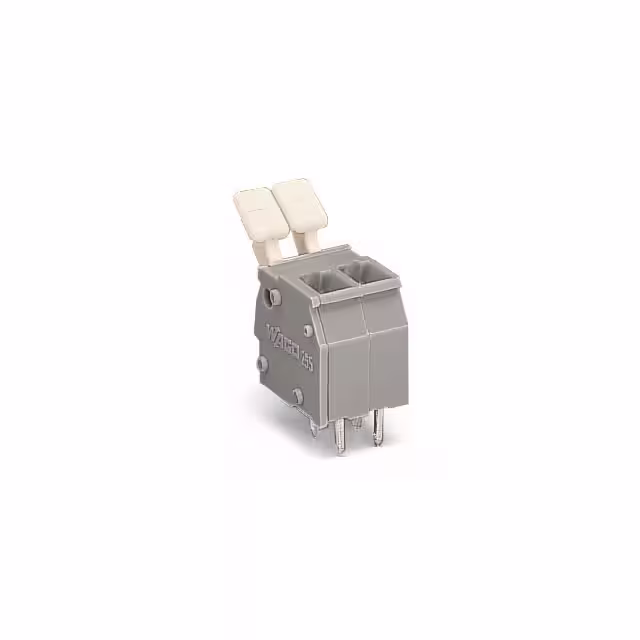

255-402/333-000

Manufacturer :

WAGO

Product Category :

Wire to Board

Composition :

Polyamide

Min. stripping length :

8mm

Manufacturer :

Wago

Package :

Box

Cross section (inflexible) (min.) :

0.08mm²

RoHS :

yes

Pitch :

0.200 (5.08mm)

Rated Current :

16A

AWG max. :

12

Wire Cross Section :

2.5 mm2

ECCN Code :

EAR99

Number of Levels :

1

Screw Material - Plating :

-

CS :

5mm,5.08mm

Manufacturer part # :

255-402/333-000

Number of Decks :

1

Length :

12.90mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Termination :

Screwless - Push Button Clamp

Industrial packaging :

yes

Series :

255

Connection Type :

Spring Clamp

Color :

Gray

Cross section (inflexible) (max.) :

2.50mm²

Mounting Type :

PCB Mount

Pins per row :

2

Torque - Screw :

-

Rated Voltage :

320V

Wire Gauge :

12-28 AWG

Height :

22.20mm

HTS Code :

8536.69.40.40

Features :

+ CAGE CLAMP®

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Cross section (flexible) (max.) :

2.50mm²

Product Status :

Active

Number of Poles :

2

Connection :

Spring-loaded terminal,Print

Cross section (flexible) (min.) :

0.08mm²

Temperature Range :

-76-221 °F

Wire protection :

yes

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Width :

23.00mm

Current :

15 A

Number of Ways :

2

Operating Temperature :

-60°C ~ 105°C

Mating Orientation :

Vertical with Board

Safety Approval :

UL; CSA

Reach Compliance Code :

Compliant

Nominal voltage :

320V

Pin Length :

4 mm

Content :

400pc(s)

Voltage :

300 V

Type :

255-402/333-000

Positions Per Level :

2

Fastening Method :

SPRING LOADED

Clamp Material - Plating :

Steel - Nickel Plated

Screw Thread :

-

Number of Rows :

1

Stripping length (max.) :

6mm

AWG (min.) :

28
