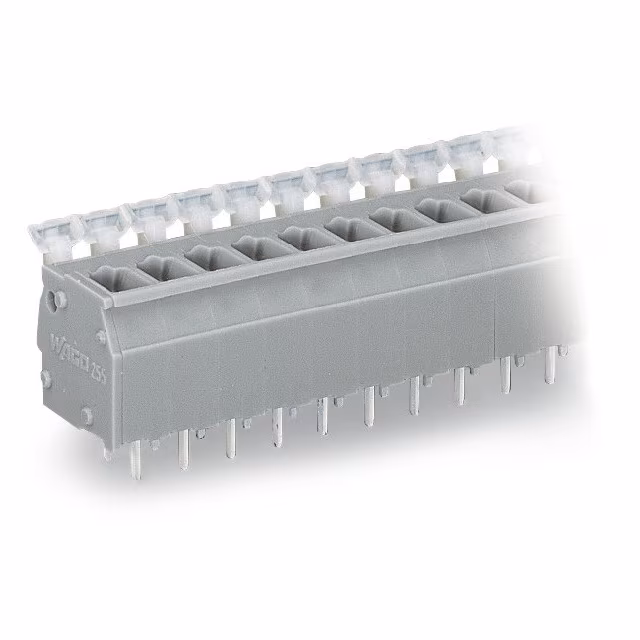

255-402

Manufacturer :

WAGO

Product Category :

Wire to Board

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Pitch :

0.200 (5.08mm)

Screw Material - Plating :

-

Type of fastening :

Solder

CS :

5mm,5.08mm

Cross section (flexible) (min.) :

0.08mm²

Product Length (mm) :

18.3(mm)

Industrial packaging :

yes

Pin Length :

4 MilliMeters

Clamp Material - Plating :

Steel - Nickel Plated

Connectable conductor cross section multi-wired :

0.08 - 2.5

Package :

Box

Wire protection :

yes

Min. stripping length :

8mm

Number of Poles :

2

Mounting Style :

Through Hole

Stripping length (max.) :

13mm

Number of Levels :

1

Length :

12.90mm

Screw Thread :

-

Current Rating (Max) :

16(A)

Current :

15 A

Connection :

Spring-loaded terminal,Print

Content :

400pc(s)

AWG max. :

12

Connection Type :

Spring Clamp

Housing Material :

Polyamide (PA66), Nylon 6/6

Temperature Range :

-76 to 221 Degrees F

Manufacturer :

Wago

Series :

255

Gender :

F

Rad Hardened :

No

Wire Termination :

Screwless - Push Button Clamp

Width :

18.30mm

AWG (min.) :

28

Torque - Screw :

-

Voltage :

300 V

Connectable conductor cross section solid-core :

0.08 - 2.5

Rated current In :

24

Termination Method :

Solder

Product Status :

Active

Rated surge voltage :

4

Over voltage category :

III

Contact Pitch (mm) :

5(mm)

Positions Per Level :

2

Operating Temperature :

-60°C ~ 105°C

Type :

255-402

Composition :

Polyamide

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Color :

Gray

Packaging :

Box

Pins per row :

2

RoHS :

yes

Number of Contacts :

2(POS)

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Contact Rows :

1

Approvals :

CSA;UL

Body Orientation :

RIGHT ANGLE

Height :

18.20mm

Pollution degree :

2

Cross section (inflexible) (min.) :

0.08mm²

Features :

+ CAGE CLAMP®

Cross section (inflexible) (max.) :

2.50mm²

Wire Gauge :

12-28 AWG

Product Height (mm) :

14.2(mm)

Mounting Type :

PCB Mount

Nominal voltage :

320V

Cross section (flexible) (max.) :

2.50mm²

Manufacturer part # :

255-402

Mating Orientation :

Vertical with Board

Product Depth (mm) :

12.9(mm)
