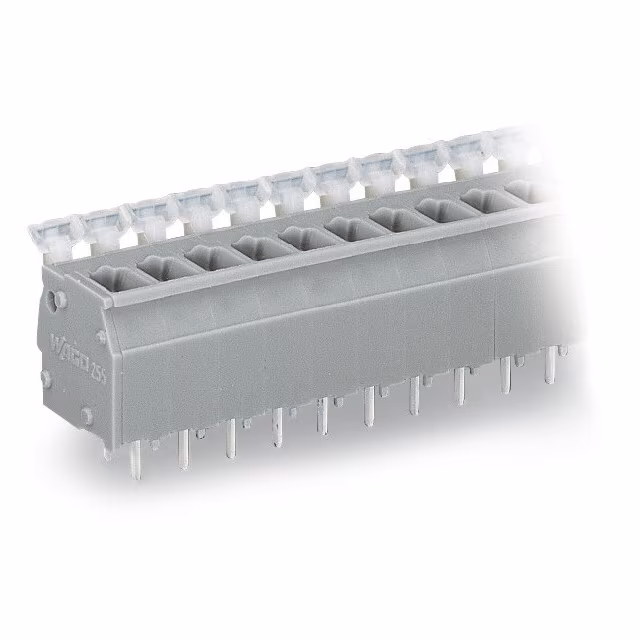

255-402/000-009/999-950

Manufacturer :

WAGO

Product Category :

Wire to Board

Mating Orientation :

Vertical with Board

RoHS :

yes

Manufacturer part # :

255-402/000-009/999-950

Packaging type :

Other

Pitch :

0.200 (5.08mm)

Number of Levels :

1

Wire Gauge :

12-28 AWG

Manufacturer :

Wago

Connection Type :

Spring Clamp

Features :

+ CAGE CLAMP®

Length :

12.90mm

Wire Termination :

Screwless - Push Button Clamp

Height :

18.20mm

AWG (min.) :

28

Inflammability class of insulation material according to with UL94 :

V0

Stripping length (max.) :

8mm

Cross section (inflexible) (min.) :

0.08mm²

Product Status :

Active

Number of Poles :

2

Temperature Range :

-76 to 221 Degrees F

Type of fastening :

Solder

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Content :

400pc(s)

Cross section (inflexible) (max.) :

2.50mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Wire protection :

yes

No. of rows :

1

Nominal voltage :

176V

Color :

Gray

Series :

255

CS :

5mm,5.08mm

Package :

Box

Screw Thread :

-

Pins per row :

2

Connectable conductor cross section solid-core :

0.5 - 2.5

Torque - Screw :

-

Rated current In :

16

Operating Temperature :

-60°C ~ 105°C

Industrial packaging :

yes

Width :

18.30mm

Composition :

Polyamide

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Housing Material :

Polyamide (PA66), Nylon 6/6

Positions Per Level :

2

AWG max. :

12

Type :

255-402/000-009/999-950

Clamp Material - Plating :

Steel - Nickel Plated

Cross section (flexible) (max.) :

2.50mm²

Screw Material - Plating :

-

Mounting Type :

PCB Mount

Connectable conductor cross section multi-wired :

0.5 - 2.5

Pin Length :

4 MilliMeters

Cross section (flexible) (min.) :

0.08mm²

Connection :

Spring-loaded terminal,Print

Min. stripping length :

8mm
