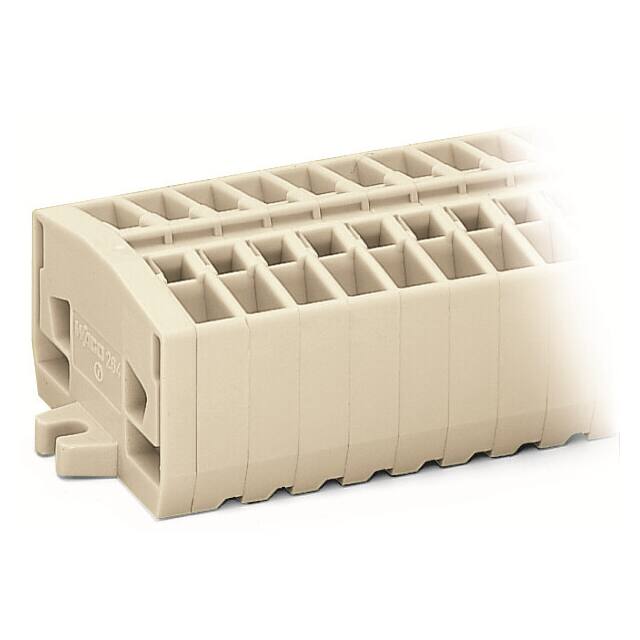

264-189

Manufacturer :

WAGO

Product Category :

Specialized

AWG max. :

14

Type :

264-189

Cross section (inflexible) (min.) :

0.50mm²

Clamp width :

6mm

Industrial packaging :

yes

Wire Gauge or Range - AWG :

12-28 AWG

Product Status :

Active

Cross section (flexible) (max.) :

2.50mm²

Approvals :

CSA, UR

Wire Gauge or Range - mm² :

0.08-2.5mm²

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

ECCN (US) :

EAR99

Termination Style :

Push In, Spring

No. of rows :

9

Height :

22.10mm

Number of Levels :

1

Package :

Box

Connection :

Pull spring

HTS :

8536.90.40.00

Transparent :

No

Stripping length (max.) :

9mm

Cross section (inflexible) (max.) :

2.50mm²

Length :

32

Nominal current :

23A

Rated current In :

23

Connectable conductor cross section multi-wired :

0.5 - 2.5

Terminal - Width :

61.0mm

Material Flammability Rating :

UL94 V-0

PPAP :

No

Pins per row :

2

Series :

-

Inflammability class of insulation material according to with UL94 :

V0

EU RoHS :

Compliant

Height (Max) :

0.870 (22.10mm)

Connection Type :

Spring Clamp

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Number of Positions :

18

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Operating Temperature :

-

RoHS :

yes

Dim :

(W x H) 61 mm x 22.10 mm

Configuration :

L

Content :

50pc(s)

Cross section (flexible) (min.) :

0.50mm²

Manufacturer part # :

264-189

Housing Color :

Gray

Nominal voltage :

690V

AWG (min.) :

20

Color :

Gray

Nominal current - rounded value :

23A

Mounting Type :

Snap-In Clip

Connectable conductor cross section solid-core :

0.5 - 2.5

Min. stripping length :

8mm

Number of Poles :

9

Features :

+ latch lock base,Complies with ATEX Ex-e II standards

Depth :

22.1

Manufacturer :

Wago

Width :

61mm

Stripping Length :

8mm ~ 9mm
