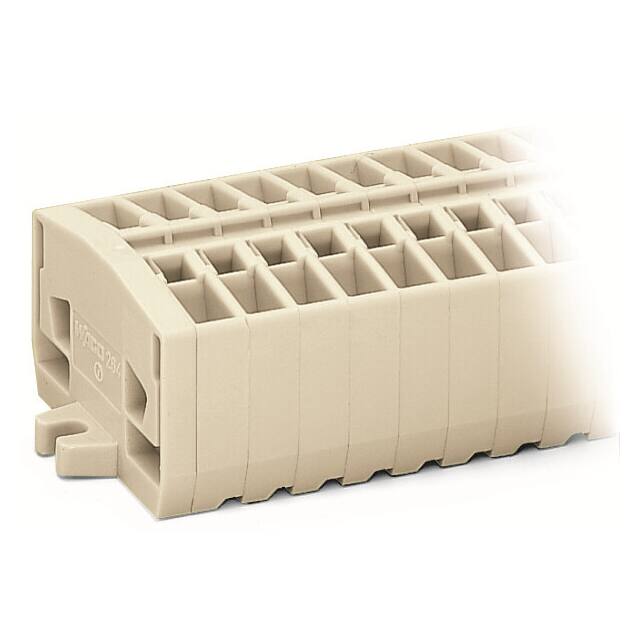

264-190

Manufacturer :

WAGO

Product Category :

Specialized

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - AWG :

12-28 AWG

Dim :

(W x H) 67 mm x 22.10 mm

Pins per row :

2

Color :

Gray

Nominal current :

23A

Configuration :

L

Automotive :

No

Min. stripping length :

8mm

Nominal voltage :

690V

Connectable conductor cross section solid-core :

0.5 - 2.5

Material Flammability Rating :

UL94 V-0

Rated current In :

23

Number of Poles :

10

No. of rows :

10

Package :

Box

Cross section (inflexible) (max.) :

2.50mm²

EU RoHS :

Compliant

Transparent :

No

Height (Max) :

0.870 (22.10mm)

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (min.) :

0.50mm²

Terminal - Width :

67.0mm

Operating Temperature :

-

Depth :

22.1

Mounting Type :

Snap-In Clip

Cross section (flexible) (min.) :

0.50mm²

Series :

-

Connectable conductor cross section multi-wired :

0.5 - 2.5

Manufacturer part # :

264-190

Height :

22.10mm

Inflammability class of insulation material according to with UL94 :

V0

HTS :

8536.90.40.00

ECCN (US) :

EAR99

Length :

32

Manufacturer :

Wago

Clamp width :

6mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Features :

+ latch lock base,Complies with ATEX Ex-e II standards

Industrial packaging :

yes

Housing Color :

Gray

Content :

25pc(s)

Cross section (flexible) (max.) :

2.50mm²

Connection :

Pull spring

Number of Levels :

1

RoHS :

yes

Width :

67mm

Type :

264-190

PPAP :

No

Nominal current - rounded value :

23A

Connection Type :

Spring Clamp

Wire Gauge or Range - mm² :

0.08-2.5mm²

Number of Positions :

20

Approvals :

CSA, UR

Stripping length (max.) :

9mm

AWG (min.) :

20

Product Status :

Active

AWG max. :

14
