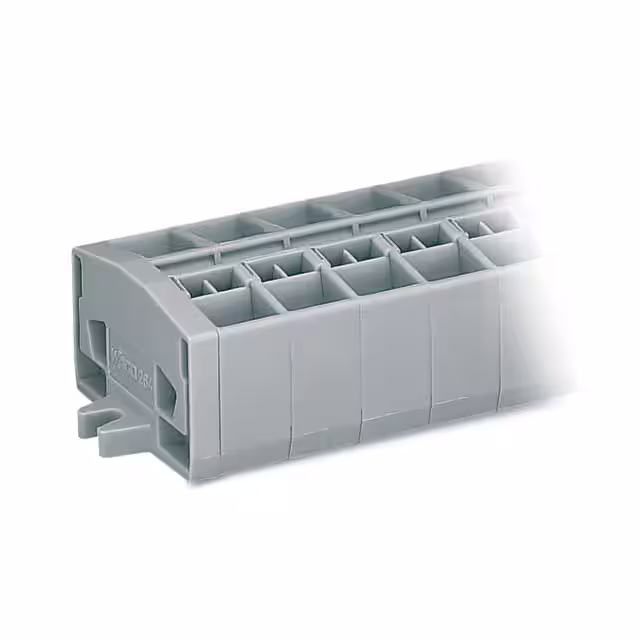

264-256

Manufacturer :

WAGO

Product Category :

Specialized

Configuration :

L

Type :

264-256

No. of rows :

6

Pins per row :

4

Number of Positions :

24

Width :

67mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Height (Max) :

0.870 (22.10mm)

Operating Temperature :

-

Stripping length (max.) :

9mm

Package :

Box

Material Flammability Rating :

UL94 V-0

Number of Levels :

1

Nominal current :

24A

Industrial packaging :

yes

Cross section (flexible) (min.) :

0.08mm²

Approvals :

CSA, UR

Current - IEC :

24 A

Number of Poles :

6

HTS :

8536.90.40.00

PPAP :

No

Mount :

Screw

Nominal current - rounded value :

24A

Wire Gauge or Range - AWG :

12-28 AWG

Manufacturer :

Wago

Connection :

Pull spring

Number of Rows :

6

Wire Gauge or Range - mm² :

0.08-2.5mm²

RoHS :

yes

ECCN (US) :

EAR99

Flammability Rating :

UL94 V-0

Mounting Type :

Snap-In Clip

Height :

22.10mm

Clamp width :

10mm

Transparent :

No

Cross section (inflexible) (max.) :

2.50mm²

Termination Style :

Push In, Spring

Manufacturer part # :

264-256

Current Rating :

24 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Length :

32

Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

Features :

+ latch lock base

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Depth :

22.1

Cross section (inflexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

Min. stripping length :

8mm

Cross section (flexible) (max.) :

2.50mm²

Contamination level :

3

EU RoHS :

Compliant

Connectable conductor cross section multi-wired :

0.08 - 2.5

Product Status :

Active

Rated current In :

24

Automotive :

No

Terminal - Width :

67.0mm

Number of Pins :

24

Content :

50pc(s)

Housing Color :

Gray

Series :

-

Nominal voltage :

800V

AWG max. :

14

Dim :

(W x H) 67 mm x 22.10 mm

Stripping Length :

8mm ~ 9mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Voltage - IEC :

800 V

AWG (min.) :

28
