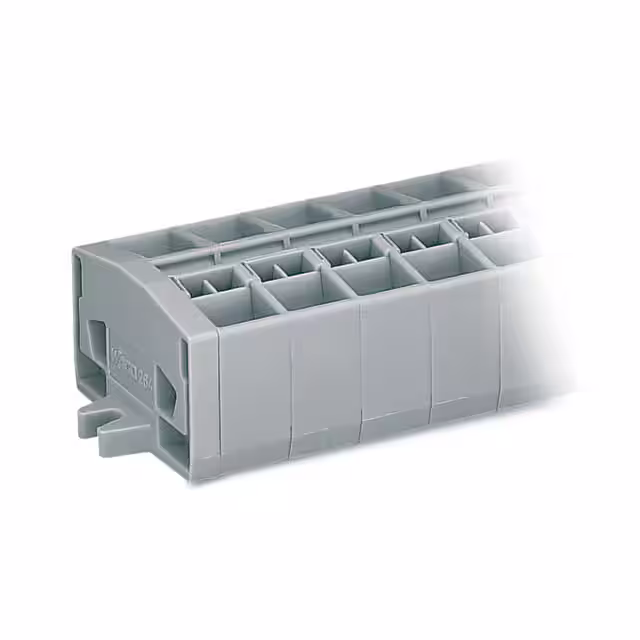

264-257

Manufacturer :

WAGO

Product Category :

Specialized

AWG max. :

14

Wire Gauge or Range - AWG :

12-28 AWG

Configuration :

L

Operating Temperature :

-

Termination Style :

Push In, Spring

Min. stripping length :

8mm

No. of rows :

7

Material Flammability Rating :

UL94 V-0

RoHS :

yes

Features :

+ latch lock base

Height (Max) :

0.870 (22.10mm)

Manufacturer part # :

264-257

Inflammability class of insulation material according to with UL94 :

V0

Industrial packaging :

yes

Color :

Gray

Nominal voltage :

800V

Cross section (flexible) (min.) :

0.08mm²

ECCN (US) :

EAR99

Wire Gauge or Range - mm² :

0.08-2.5mm²

Cross section (inflexible) (min.) :

0.08mm²

Nominal current - rounded value :

24A

Transparent :

No

Number of Levels :

1

Height :

22.10mm

Product Status :

Active

Content :

50pc(s)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Length :

32

Mounting Type :

Snap-In Clip

PPAP :

No

Connection Type :

Spring Clamp

Depth :

22.1

Contamination level :

3

Current - IEC :

24 A

Approvals :

CSA, UR

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Width :

77mm

EU RoHS :

Compliant

Voltage - IEC :

800 V

Connection :

Pull spring

Terminal - Width :

77.0mm

Dim :

(W x H) 77 mm x 22.10 mm

Housing Color :

Gray

Number of Positions :

28

Stripping length (max.) :

9mm

HTS :

8536.90.40.00

Pins per row :

4

Rated current In :

24

Clamp width :

10mm

Series :

-

Automotive :

No

AWG (min.) :

28

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Type :

264-257

Cross section (flexible) (max.) :

2.50mm²

Manufacturer :

Wago

Number of Poles :

7

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (inflexible) (max.) :

2.50mm²

Connectable conductor cross section solid-core :

0.08 - 2.5

Package :

Box

Stripping Length :

8mm ~ 9mm

Nominal current :

24A
