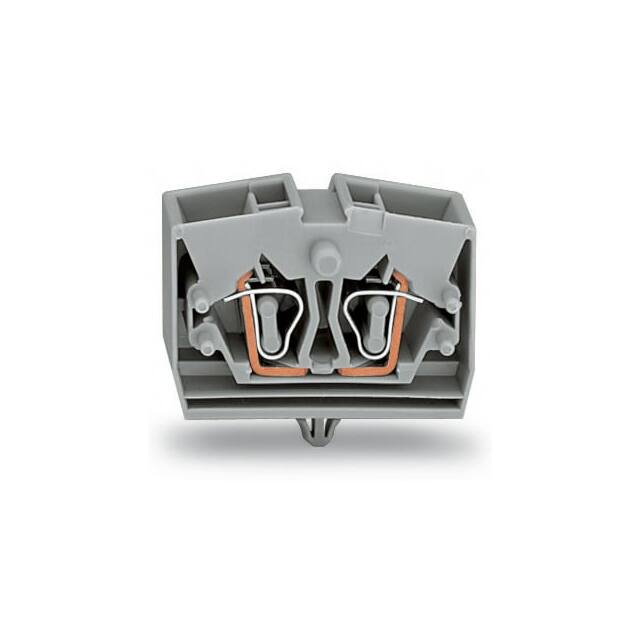

264-341

Manufacturer :

WAGO

Product Category :

Specialized

Minimum Operating Temperature (°C) :

-60

EU RoHS :

Compliant

Product Status :

Active

Number of Levels :

1

Maximum Current Rating (A) :

24

Cross section (inflexible) (max.) :

2.50mm²

AWG (min.) :

28

Mounting :

DIN Rail

Type :

Terminal Block

Safety Approval :

UL; CSA

Cross section (flexible) (min.) :

0.08mm²

Number of Rows :

4

Termination Style :

Push In, Spring

Schedule B :

8536904000/8536904000/8536904000/8536904000/8536904000

Mounting Style :

Din-Rail

Operating Voltage (Max) :

800V

Number of Circuits :

1

Length :

32

Series :

-

Wire Gauge :

12-28(AWG)

Rated Current :

20 A

Terminal - Width :

10.0mm

Number of Pins :

4

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Color :

Gray

Nominal current :

24A

Package :

Box

Nominal current - rounded value :

24A

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

AWG max. :

14

Depth :

22.1

Connection :

Pull spring

Rad Hardened :

No

Mount :

Screw

Rated current In :

24

Voltage - IEC :

800 V

Number of Decks :

1

Maximum Operating Temperature (°C) :

105

Number of Positions :

4

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Ways :

4

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Manufacturer :

Wago

Nominal voltage :

800V

HTS Code :

8536.69.40.40

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Housing Color :

Gray

Transparent :

No

PPAP :

No

Reach Compliance Code :

Compliant

Height :

32

Wire Gauge or Range - AWG :

12-28 AWG

Fastening Method :

SPRING LOADED

Connectable conductor cross section multi-wired :

0.08 - 2.5

Rated Voltage :

600 V

Automotive :

No

Additional Feature :

Cage Clamp

Height (Max) :

0.870 (22.10mm)

Clamp width :

10mm

Current Rating :

24 A

Min. stripping length :

8mm

Maximum Voltage Rating :

800V

Pins per row :

4

ECCN Code :

EAR99

Mounting Type :

Snap-In

Number of Contact Rows :

4

Flammability Rating :

UL94 V-0

Features :

+ latch lock base

Operating Temperature :

-

Manufacturer part # :

264-341

Content :

1pc(s)

Material Flammability Rating :

UL94 V-0

No. of rows :

1

Packaging :

Box

Configuration :

L

Inflammability class of insulation material according to with UL94 :

V0

Current - IEC :

24 A

RoHS :

yes

Cross section (inflexible) (min.) :

0.08mm²

Wire Cross Section :

2.5 mm2

Current Rating (Max) :

24(A)

HTS :

8536.90.40.00

Stripping length (max.) :

9mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (flexible) (max.) :

2.50mm²

Number of Contacts :

4

Width :

10mm
