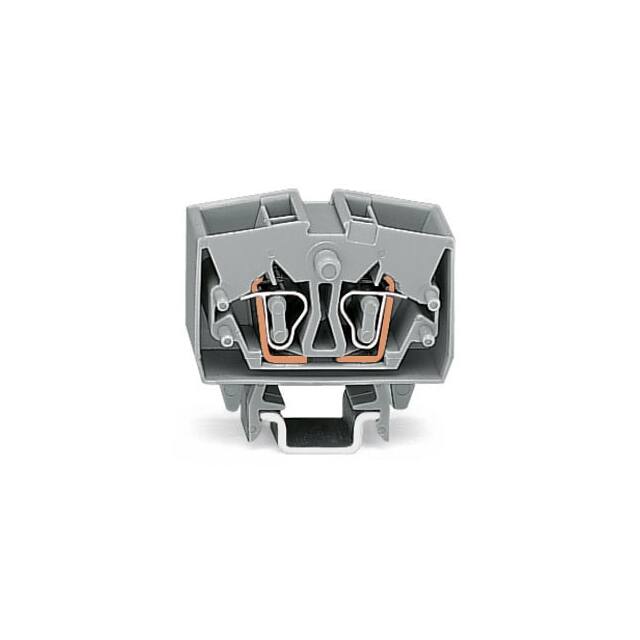

264-726

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Dim :

(W x H) 10 mm x 24.50 mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material - Insulation :

-

Cross section (flexible) (min.) :

0.08mm²

Number of Positions :

4

Type :

Terminal Block

Packaging :

Box

Nominal current :

24A

Content :

100pc(s)

Automotive :

No

Product Status :

Active

Product Length (mm) :

10

ECCN (US) :

EAR99

Contamination level :

3

Industrial packaging :

yes

Housing Color :

Orange

Features :

-

No. of rows :

1

HTS :

8536.90.40.00

Wire Gauge or Range - AWG :

12-28 AWG

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature (°C) :

105

Fuse Type :

-

Clamp width :

10mm

Mounting Type :

DIN Rail

AWG max. :

14

Package :

Box

RoHS :

yes

Number of Levels :

1

PPAP :

No

Cross section (inflexible) (max.) :

2.50mm²

Pins per row :

4

Voltage - UL :

-

Terminal - Width :

10.0mm

Current - IEC :

24 A

Height :

24.50mm

EU RoHS :

Compliant

Number of Circuits :

1

Manufacturer part # :

264-726

Disconnect Type :

-

Stripping Length :

8mm ~ 9mm

Series :

264

Voltage - IEC :

800V

AWG (min.) :

28

Minimum Operating Temperature (°C) :

-60

Color :

Orange

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (max.) :

2.50mm²

Mounting :

T DIN RAIL

Stripping length (max.) :

9mm

Number of Contacts :

4

Product Depth (mm) :

32

Number of Rows :

2

Nominal current - rounded value :

24A

Connection :

Pull spring

Termination Style :

Push In, Spring

Min. stripping length :

8mm

Width :

10mm

Termination Method :

Cage Clamp

Maximum Current Rating (A) :

24

Maximum Voltage Rating :

800V

Nominal voltage :

800V

Product Height (mm) :

24.5

Manufacturer :

Wago
