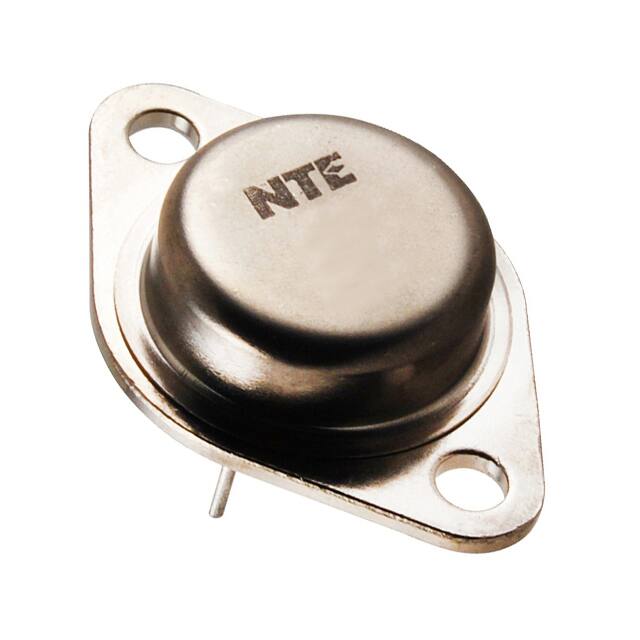

2N5686

Manufacturer :

Microchip Technology

Product Category :

Transistors - Bipolar (BJT) - Single

Max Collector Current :

50A

Lifecycle Status :

IN PRODUCTION (Last Updated: 1 month ago)

Published :

2007

Collector Base Voltage (VCBO) :

80V

Terminal Finish :

TIN LEAD

Max Power Dissipation :

300W

Pin Count :

2

Polarity/Channel Type :

NPN

Terminal Form :

PIN/PEG

JEDEC-95 Code :

TO-204AE

ECCN Code :

EAR99

Pbfree Code :

No

Max Operating Temperature :

200°C

Qualification Status :

Not Qualified

JESD-30 Code :

O-MBFM-P2

Number of Elements :

1

DC Current Gain-Min (hFE) :

5

Collector Emitter Voltage (VCEO) :

80V

Configuration :

Single

Mount :

Through Hole

HTS Code :

8541.29.00.95

RoHS Status :

Non-RoHS Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Min Operating Temperature :

-55°C

Terminal Position :

BOTTOM

JESD-609 Code :

e0

Contact Plating :

Lead, Tin

Factory Lead Time :

12 Weeks

Packaging :

Bulk

Number of Terminations :

2

Case Connection :

COLLECTOR
