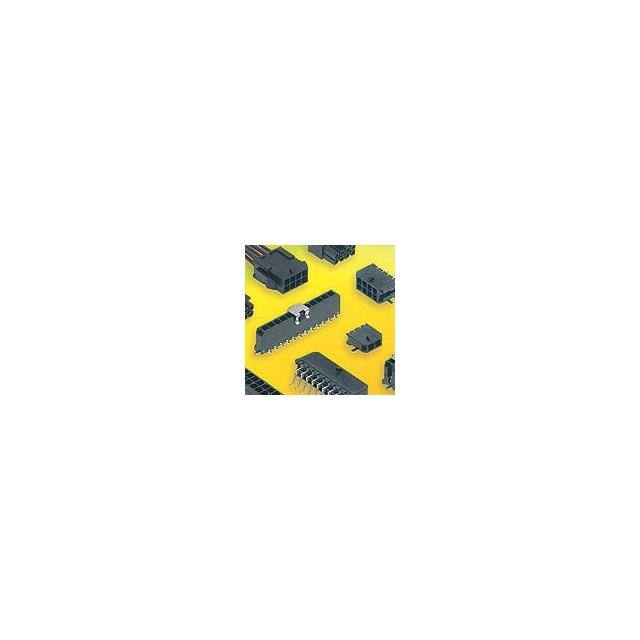

43650-0326

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Empty Shell :

No

Connector System :

Wire to Board

Total Number of Contacts :

3

Number of Rows :

1

Termination Method :

Solder

Contact Gender :

Pin (Male)

Tradename :

Micro-Fit 3.0

Termination Type :

Surface Mount

Mounting Style :

SMD/SMT

Contact Plating :

Gold

HTS Code :

8536.69.40.30

Packaging :

MouseReel

Pitch :

3mm

Maximum Operating Temperature :

+ 105 C

Product Category :

Headers and Wire Housings

Current Rating :

5.0A

Minimum Operating Temperature :

- 40 C

Termination Style :

Solder

Product :

Headers

Product Type :

Headers and Wire Housings

Mounting Angle :

Straight

Connector Type :

RECTANGULAR POWER CONNECTOR

Manufacturer :

Molex

Housing Color :

Black

Accessory Type :

-

Contact Material :

Brass

Contact Type :

-

Mounting Type :

Surface Mount

Mixed Contacts :

No

RoHS :

Details

Contact Style :

SQ PIN-SKT

Reach Compliance Code :

Compliant

Orientation :

Vertical

Voltage Rating :

600 V

Series :

Micro-Fit

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

PLUG

Option :

GENERAL PURPOSE

Type :

SHROUDED

Number of Contacts :

3

Brand :

Molex

ECCN Code :

EAR99

Housing Material :

Liquid Crystal Polymer (LCP)

Subcategory :

Headers and Wire Housings

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Application :

Power

Body Orientation :

Vertical

Number of Positions :

3 Position

Body Depth :

0.39 inch

UL Flammability Code :

94V-0

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Pbfree Code :

yes

Flammability Rating :

UL 94 V-0

Body Breadth :

0.172 inch

Flammability :

94V-0

Reference Standard :

CSA,TUV,UL

Filter Feature :

No

JESD-609 Code :

e3

Product Status :

Active
