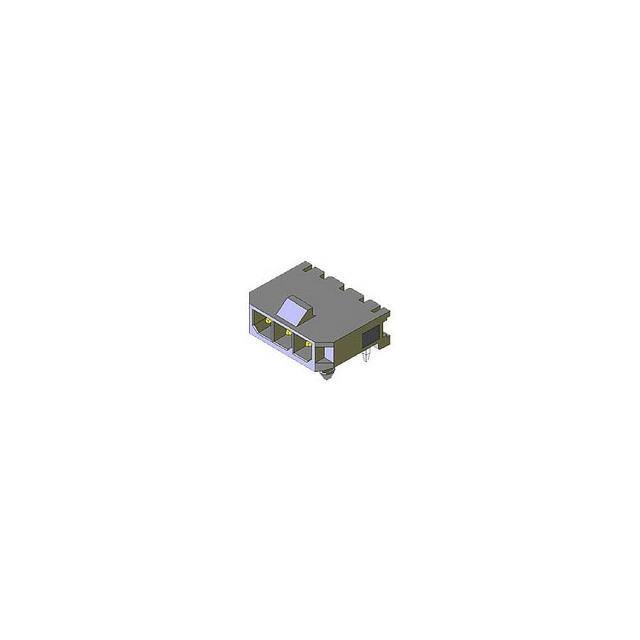

43650-0601

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Accessory Type :

-

Minimum Operating Temperature :

- 40 C

Orientation :

RIGHT ANGLE

Pbfree Code :

yes

Body/Shell Style :

Receptacle

Flammability :

94V-0

Product Height (mm) :

5.57(mm)

Packaging :

Tray

Connector Type :

RECTANGULAR POWER CONNECTOR

Voltage Rating :

600 V

Filter Feature :

No

Mounting Type :

Through Hole

Mounting Style :

Through Hole

Flammability Rating :

UL 94 V-0

Operating Temperature Min Deg. C :

-40C

PCB Contact Pattern :

RECTANGULAR

Reach Compliance Code :

Compliant

Manufacturer :

Molex

Terminal Pitch :

2.9972 mm

Plating Thickness :

15u inch

Empty Shell :

No

JESD-609 Code :

e3

Contact Resistance Max :

10(mohm)

Contact Type :

-

Current Rating (Max) :

8.5/Contact(A)

Product Length (mm) :

21.65(mm)

Pitch :

3.0mm

Number of Positions :

6 Position

Tradename :

Micro-Fit 3.0

Number Of PCB Rows :

1

Current Rating :

5.0A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

6

IEC Conformance :

No

Number of Rows :

1

MIL Conformance :

No

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Housing Color :

Black

Contact Finish Termination :

TIN (100) OVER NICKEL

Number of Ports :

1(Port)

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

Housing Material :

Thermoplastic

Mixed Contacts :

No

Insulator Color :

Black

Number of Terminals :

6

Pitch (mm) :

3(mm)

Body Depth :

0.39 inch

Reference Standard :

UL

ECCN Code :

EAR99

Contact Gender :

Pin (Male)

Option :

GENERAL PURPOSE

Board Mounting Option :

PEG

Brand :

Molex

Mating Contact Pitch :

0.118 inch

Product Depth (mm) :

9.9(mm)

Contact Material :

Brass

Operating Temp Range :

-40C to 105C

Product :

Headers

Gender :

HDR

Product Diameter (mm) :

Not Required(mm)

Voltage Rating Max :

600V

Termination Style :

Solder Pin

Operating Temperature Max Deg. C :

105C

Connector System :

Wire to Board

Product Type :

Headers and Wire Housings

Terminal Length :

0.125 inch

Application :

Power

Contact Plating :

Gold Over Nickel

Product Category :

Headers and Wire Housings

Termination Type :

Solder

Mounting Angle :

RIGHT ANGLE

Number of Contact Rows :

1

RoHS :

Details

Additional Feature :

TRAY PACKAGING

Number of Contacts :

6Power(POS)

Termination Method :

Solder

Maximum Operating Temperature :

+ 105 C

UL Flammability Code :

94V-0

Type :

Wire to Board

HTS Code :

8536.69.40.30

Body Orientation :

RIGHT ANGLE

Insertion Force-Max :

11.5648 N

Body Breadth :

0.172 inch

Subcategory :

Headers and Wire Housings

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Product Status :

Active

Series :

Micro-Fit 3.0

Mounting Option 1 :

LOCKING
