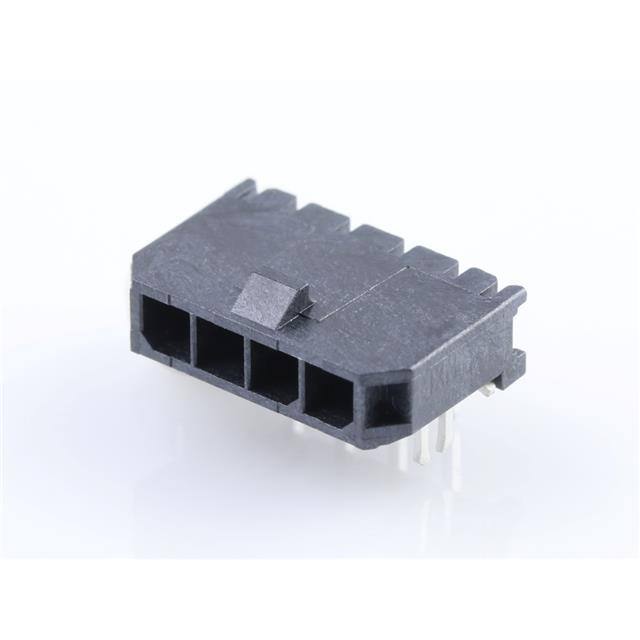

43650-0405

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Gender :

HDR

Product Status :

Active

Contact Type :

-

Pitch (mm) :

3(mm)

Mating Information :

43645

IEC Conformance :

No

Mounting Style :

Through Hole

Application :

Power

Shell Material :

LIQUID CRYSTAL POLYMER

DIN Conformance :

No

Connector Type :

RECTANGULAR POWER CONNECTOR

Manufacturer :

Molex

Filter Feature :

No

Reference Standard :

UL

Option :

GENERAL PURPOSE

Contact Arrangement :

S0P4

Reach Compliance Code :

Compliant

Operating Temperature Min Deg. C :

-40C

Packaging :

Tray

Maximum Operating Temperature :

+ 105 C

Termination Type :

Solder

Product Height (mm) :

5.57(mm)

Accessory Type :

-

Orientation :

RIGHT ANGLE

Subcategory :

Headers and Wire Housings

Package :

Box

Mounting Type :

BOARD AND CABLE

Insulation Resistance :

1000000000 Ω

Contact Material :

Brass Alloy

Number of Contacts :

4(POS)

Insulator Color :

Black

Termination Style :

Solder Pin

Contact Finish Termination :

TIN/LEAD OVER NICKEL

Number of Ports :

1(Port)

Product Depth (mm) :

9.9(mm)

HTS Code :

8536.69.40.30

Mounting Angle :

RIGHT ANGLE

Number of Rows :

1 Row

Contact Style :

SQ PIN-SKT

Product Diameter (mm) :

Not Required(mm)

Voltage Rating Max :

600V

Product :

Headers

Durability :

30 Cycles

Additional Feature :

POLARIZED

Mounting Option 1 :

LOCKING

Contact Plating :

Gold Over Nickel

Contact Gender :

Pin (Male)

Terminal Length :

0.125 inch

Number of Positions :

4 Position

Number of Terminals :

4

Mixed Contacts :

No

Series :

43650

Voltage Rating :

600 V

Body Breadth :

0.219 inch

MIL Conformance :

No

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL 94 V-0

Body/Shell Style :

Receptacle

Operating Temperature Max Deg. C :

105C

Product Category :

Headers and Wire Housings

Termination Method :

Solder

Plating Thickness :

30u inch

RoHS :

Details

Housing Material :

Liquid Crystal Polymer (LCP)

Empty Shell :

No

Current Rating (Max) :

8.5/Contact(A)

UL Flammability Code :

94V-0

Brand :

Molex

Current Rating :

8.5 A

Board Mounting Option :

PEG

Product Length (mm) :

15.65(mm)

Body Orientation :

RIGHT ANGLE

Housing Color :

Black

Contact Resistance :

10 MΩ

Pbfree Code :

yes

Total Number of Contacts :

4

Flammability :

94V-0

Insertion Force-Max :

11.5648 N

Termination Post Length :

3.18 mm

Terminal Pitch :

2.9972 mm

Product Type :

Headers and Wire Housings

Pitch :

3 mm

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

1000VAC V

Type :

Power

Operating Temp Range :

-40C to 105C

Reliability :

COMMERCIAL

Tradename :

Micro-Fit 3.0

Body Depth :

0.39 inch
