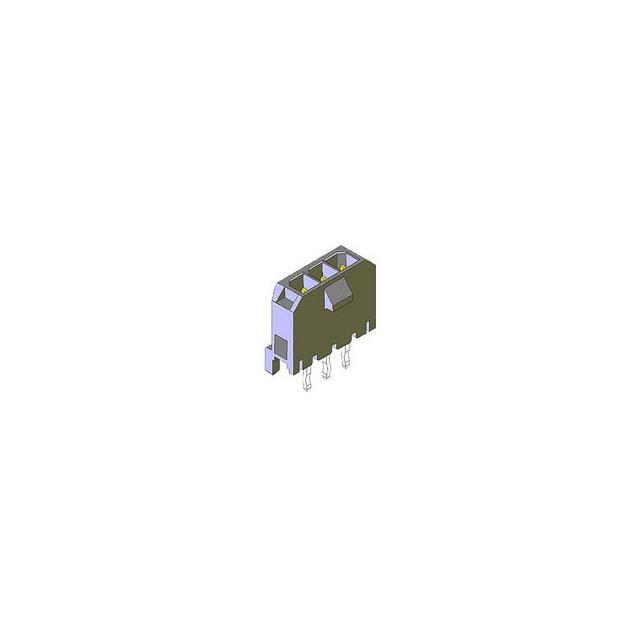

43650-0716

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Terminal Pitch :

3 mm

Operating Temperature Max Deg. C :

105C

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Body Breadth :

0.219 inch

Number Of PCB Rows :

1

Insulation Resistance :

1000000000 Ω

Board Mounting Option :

PEG

Subcategory :

Headers and Wire Housings

Mounting Style :

Through Hole

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

Accessory Type :

-

Contact Type :

-

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e3

Product Status :

Active

Termination Method :

Solder

ECCN Code :

EAR99

DIN Conformance :

No

Body Orientation :

Straight

Connector Type :

Power Connector

Current Rating :

8.5 A

Maximum Operating Temperature :

+ 105 C

Insulator Color :

Black

Orientation :

Vertical

MIL Conformance :

No

Dielectric Withstanding Voltage :

1500VAC V

Body Depth :

0.39 inch

Product Depth (mm) :

5.57(mm)

Minimum Operating Temperature :

- 40 C

Termination Type :

Solder

HTS Code :

8536.69.40.40

Current Rating (Max) :

8.5/Contact(A)

Gender :

HDR

Operating Temp Range :

-40C to 105C

Manufacturer :

Molex

Filter Feature :

No

Pbfree Code :

yes

Tradename :

Micro-Fit 3.0

Application :

Power

Pitch (mm) :

3(mm)

RoHS :

Details

Brand :

Molex

Packaging :

Tray

Product Height (mm) :

9.9(mm)

Flammability Rating :

UL 94 V-0

Product Category :

Headers and Wire Housings

Housing Material :

Thermoplastic (TP)

Number of Ports :

1(Port)

Housing Color :

Black

PCB Contact Pattern :

RECTANGULAR

Contact Gender :

Pin (Male)

Contact Resistance :

10 MΩ

Contact Plating :

Gold Over Nickel

Reliability :

COMMERCIAL

Durability :

30 Cycles

Product Type :

Headers and Wire Housings

Series :

43650

Reference Standard :

CSA; UL

Number of Positions :

7 Position

Mounting Type :

BOARD

Voltage Rating :

600 V

Mating Contact Pitch :

0.118 inch

Product Length (mm) :

24.64(mm)

Contact Material :

Brass

Reach Compliance Code :

Compliant

Operating Temperature Min Deg. C :

-40C

Mixed Contacts :

No

Product Diameter (mm) :

Not Required(mm)

Type :

Wire to Board

Polarization Key :

POLARIZED HOUSING

Withdrawl Force-Min :

3.0024 N

Number of Terminals :

7

Mounting Angle :

Straight

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Voltage Rating Max :

600V

Number of Contact Rows :

1

Terminal Length :

0.125 inch

Number of Rows :

1 Row

Product :

Headers

Flammability :

94V-0

Pitch :

3 mm

UL Flammability Code :

94V-0

Rated Current (Signal) :

8.5 A

Termination Style :

Solder Pin

Total Number of Contacts :

7

Number of Contacts :

7(POS)

Mating Information :

MULTIPLAE MATING PARTS AVAILABLE

Plating Thickness :

15u inch

IEC Conformance :

No

Empty Shell :

No

Contact Resistance Max :

10(mohm)
