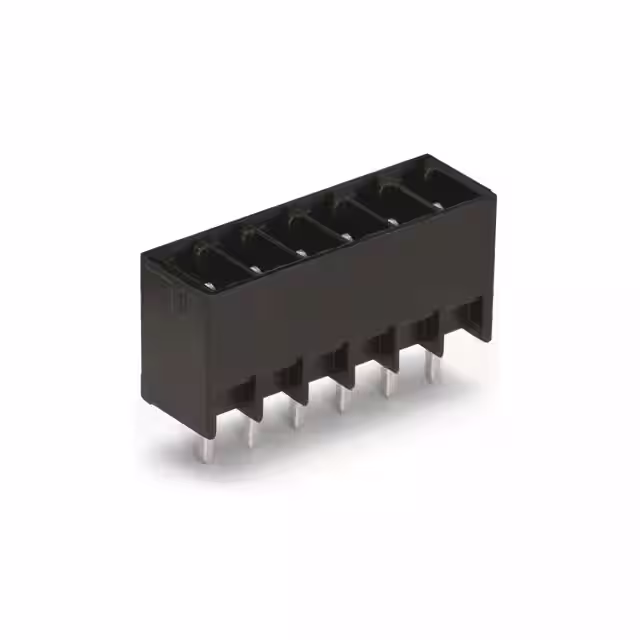

714-133

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Series :

714

Contact Mating Finish :

Tin

Type of fastening :

Solder

Packaging type :

Carton (box)

Product Status :

Active

Approvals :

CCA, UR

Wire Gauge or Range - mm² :

-

Number of Positions :

3

Color :

Black

Insulation Height :

0.272 (6.91mm)

Rated surge voltage :

2.5

Features :

-

Voltage - IEC :

320 V

EU RoHS :

Compliant

Plug Wire Entry :

-

Mounting :

Through Hole

HTS :

8536.69.40.40

Pollution degree :

2

Product Height (mm) :

9.7

Wire Gauge or Range - AWG :

-

Material of contact surface :

Tin

Maximum Voltage Rating :

160V

ECCN (US) :

EAR99

Over voltage category :

III

Termination Style :

Solder

Package :

Box

Number of Rows :

1

Manufacturer :

Wago

Maximum Current Rating (A) :

8

Torque - Screw :

-

RoHS :

Non-Compliant

Inflammability class of insulation material according to with UL94 :

V0

Current :

8 A

Housing Color :

Black

Product Length (mm) :

11.9

Number of Levels :

1

Maximum Operating Temperature (°C) :

100

Type of electric connection :

Soldering connection

Product Weight (g) :

0.7

Contact Tail Length :

0.134 (3.40mm)

Body Orientation :

Straight

Voltage :

150 V

Positions Per Level :

3

Contact Material :

Electrolytic Copper

Type :

Wire to Board

Mounting Type :

Through Hole

Temperature :

-60-100 °C

Current - IEC :

8A

Minimum Operating Temperature (°C) :

-60

Ingress Protection :

-

Screw Size :

-

Product Depth (mm) :

6.9

Termination Method :

Solder

Voltage - UL :

150 V

Automotive :

No

Terminal Pitch (mm) :

3.5

Pitch :

3.5mm

Number of Contacts :

3

Header Orientation :

Vertical

Housing Material :

Polyphthalamide (PPA), Glass Filled

Gender :

HDR

Contact Finish :

Tin

Wire Strip Length :

-

Material Flammability Rating :

UL94 V-0

Rated current In :

8

PPAP :

No

Current - UL :

8 A

Operating Temperature :

-60°C ~ 100°C
