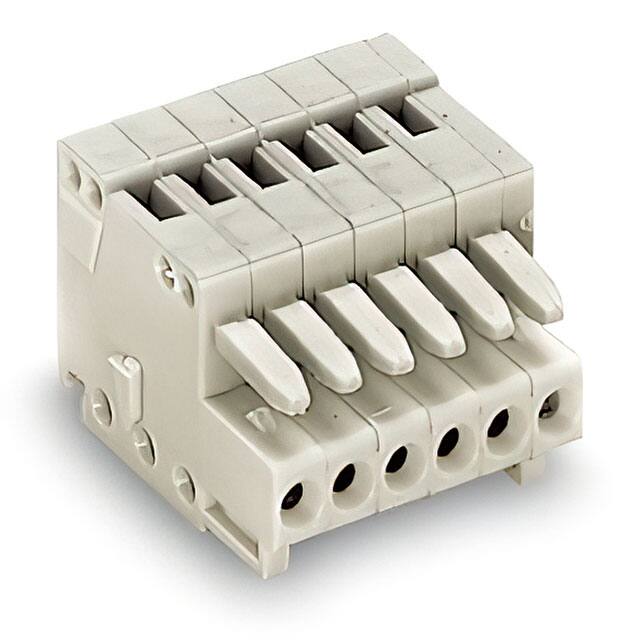

733-112

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Nominal voltage :

160V

Industrial packaging :

yes

Contact Finish :

Tin

Housing Material :

Polyamide 6/6

Current Rating :

4A

Product Status :

Active

Height :

17.10mm

Temperature :

-60-100 °C

Material of contact surface :

Tin

Plug Wire Entry :

180°

Screw Size :

-

Manufacturer :

Wago

Connectable conductor cross section multi-wired :

0.08 - 0.5

Number of Contact Rows :

1

Contact Plating :

Tin

Ingress Protection :

-

Width :

32.10mm

Connector contact surface :

Tin plated

Number of Positions :

12

Operating Voltage (Max) :

100V

Contact Mating Finish :

Tin

Degree of protection (IP), mounted :

IP20

Positions Per Level :

12

Torque - Screw :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.34

Insulation Height :

0.465 (11.80mm)

Body Orientation :

Straight

Contact Pitch (mm) :

2.5(mm)

Number of Levels :

1

Contact Tail Length :

-

Voltage :

150 V

Current - IEC :

6A

Wire Strip Length :

5-6mm

Connectable conductor cross section solid-core :

0.08 - 0.5

AWG (min.) :

28

Approvals :

CCA, CSA, UL

Length :

11.80mm

Gender :

F

Case material :

PA 66

Color :

Gray

Product Depth (mm) :

12(mm)

Size :

28-20 AWG

max. cross section :

0.5mm²

Number of Contacts :

12 Pole

Pins per row :

12

Contact Material :

COPPER ALLOY

Voltage Rating :

250 V ac

Current :

4 A

Min. cross section :

0.08mm²

Mounting Style :

CABLE

Series :

733

Current - UL :

4 A

Over voltage category :

III

Product Length (mm) :

32.2(mm)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 0.5

Material Flammability Rating :

UL94 V-0

AWG max. :

20

Wire Gauge or Range - mm² :

0.08-0.5mm²

Operating Temperature :

-60°C ~ 100°C

Pollution degree :

2

No. of rows :

1

Content :

50pc(s)

With protective conductor :

No

Wire Size (AWG) :

28AWG to 20AWG

Inflammability class of insulation material according to with UL94 :

V0

CS :

2.50mm

Packaging :

Box

Wire Size :

28-20 AWG

Header Orientation :

-

Rated surge voltage :

2.5

Nominal current :

6A

Mounting Type :

Cable Mount

Stripping length (max.) :

6.00mm

Connection :

Spring-loaded terminal

Stripping Length :

5-6 mm

Rated Voltage :

160V

Features :

Retention Latches (Non-Wire Side)

Pitch :

2.5mm

Rad Hardened :

No

Manufacturer part # :

733-112

Wire Gauge or Range - AWG :

20-28 AWG

Termination Style :

Screwless - Push-In Spring

Current Rating (Max) :

4(A)

Dim :

(L x W x H) 11.80 x 32.10 x 17.10 mm

Material housing :

Plastic

Nominal current - rounded value :

6A

Voltage - UL :

150 V

Material contact :

Other copper alloys

Product Height (mm) :

17.2(mm)

Package :

Box

Voltage - IEC :

320 V

Wire Gauge :

20-28(AWG)

Rated Current :

6A

Housing Color :

Light Gray

Type :

Terminal Block

Type of electric connection :

Spring clamp connection

Total number of pins :

12

Rated current In :

6
