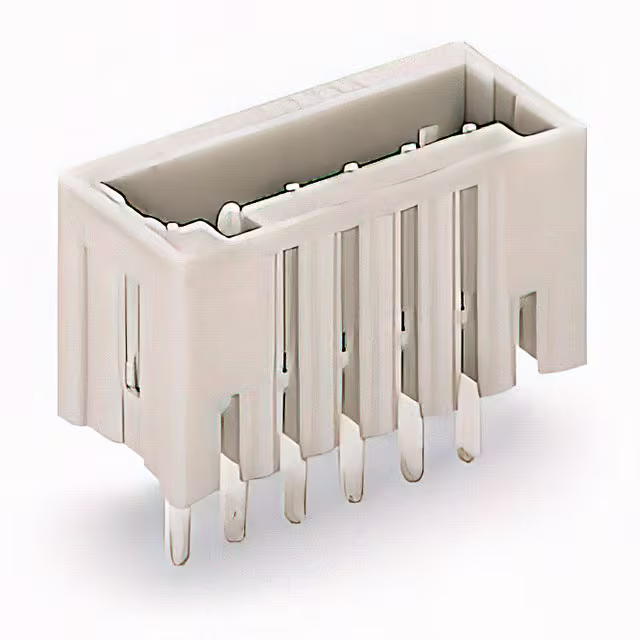

733-340

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Voltage :

150 V

Case material :

Polyamide

Housing Color :

Light Gray

Mounting Type :

Through Hole

Over voltage category :

III

Pollution degree :

2

Contact Finish :

Tin

Torque - Screw :

-

Gender :

HDR

Current - UL :

4 A

Number of Contacts :

10 Pole

Product Depth (mm) :

7.8(mm)

Contact Tail Length :

0.181 (4.60mm)

Packaging :

Box

Rated Current :

4A

Type :

733-340

Nominal current :

6A

Industrial packaging :

yes

Color :

Gray

Content :

200pc(s)

Voltage - UL :

150 V

Screw Size :

-

Packaging type :

Magazine

Type of fastening :

Solder

Number of Contact Rows :

1

Housing Material :

Polyamide 6/6

Pins per row :

10

Features :

-

Min. temperature :

-60°C

Manufacturer part # :

733-340

Plug Wire Entry :

-

Product Height (mm) :

8.9(mm)

Series :

2092

Ingress Protection :

-

Contact Plating :

Tin

Connector contact surface :

Tin plated

Width :

27.5mm

Number of Positions :

10

Connection :

Print

Contact Material :

Electrolytic Copper

Pitch :

0.098 (2.50mm)

Operating Temp Range :

-60C to 100C

Operating Temperature :

-60°C ~ 100°C

Mounting Style :

Through Hole

Manufacturer :

Wago

Pin shape :

RECTANGULAR

No. of rows :

1

Nominal current - rounded value :

6A

Total number of pins :

10

Package :

Box

Voltage Rating Max :

80V

CS :

2.50mm

Contact Mating Finish :

Tin

Max. temperature :

+100°C

Board contact surface :

Tin plated

Header Orientation :

Vertical

Nominal voltage :

160V

Insulation Height :

0.350 (8.89mm)

Length :

7.8mm

Product Length (mm) :

27.5(mm)

Inflammability class of insulation material according to with UL94 :

V0

Height :

13.5mm

Material of contact surface :

Tin

Termination Method :

Solder

Type of electric connection :

Soldering connection

Rated Voltage :

150V

Body Orientation :

Straight

Number of Levels :

1

Temperature :

-60-100 °C

Termination Style :

Solder

Wire Gauge or Range - AWG :

-

Current - IEC :

6A

Current Rating (Max) :

6(A)

Pitch (mm) :

2.5(mm)

Approvals :

CCA, CSA, UL

Product Status :

Active

Positions Per Level :

10

Wire Strip Length :

-

Rated current In :

6

Current :

4 A

Wire Gauge or Range - mm² :

-

Material Flammability Rating :

UL94 V-0

Dim :

(L x W x H) 7.8 x 27.5 x 13.5 mm

Rated surge voltage :

2.5

Voltage - IEC :

320 V
