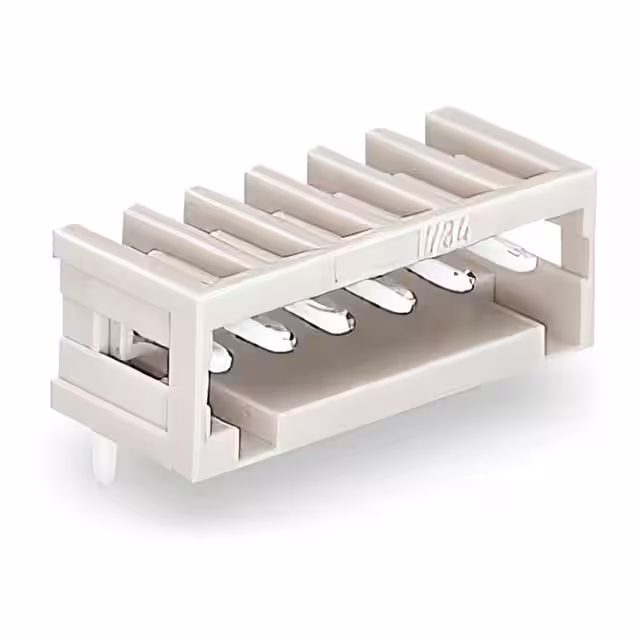

733-363

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Current :

4 A

Number of Positions :

3

Material Flammability Rating :

UL94 V-0

Current Rating :

6 A

Nominal current - rounded value :

6A

Voltage :

150 V

Positions Per Level :

3

Min Operating Temperature :

-60 °C

Housing Color :

Grey

Nominal current :

6A

Height :

11.5mm

Contact Mating Finish :

Tin

Pitch :

2.5 mm

No. of rows :

1

Termination Style :

Solder

Material of contact surface :

Tin

Wire Gauge or Range - AWG :

-

Insulation Material :

Polyamide

Termination :

Solder

Type of electric connection :

Soldering connection

Manufacturer part # :

733-363

Connector contact surface :

Tin plated

Nominal voltage :

160V

Max Operating Temperature :

100 °C

Number of Rows :

1

Min. temperature :

-60°C

Contact Plating :

Tin

Type :

WAGO GmbH and Co. KG

Voltage Rating :

150 V

Inflammability class of insulation material according to with UL94 :

V0

Type of fastening :

Solder

Approvals :

CCA, CSA, UL

CS :

2.50mm

Gender :

Header

Wire Strip Length :

-

Pins per row :

3

Insulation Height :

0.307 (7.80mm)

Plug Wire Entry :

-

Case material :

Polyamide

Flammability Rating :

UL94 V-0

Content :

200pc(s)

Current - UL :

4 A

Header Orientation :

90°, Right Angle

Rated Voltage :

150V

Mount :

Through Hole

Industrial packaging :

yes

Packaging type :

Magazine

Color :

Grey

Pin shape :

Square

Board contact surface :

Tin plated

Rated surge voltage :

2.5

Voltage - IEC :

320 V

Contact Finish :

Tin

Connector Type :

PLUG

Product Status :

Active

Pollution degree :

2

Dim :

(L x W x H) 8.9 x 10 x 11.5 mm

Ingress Protection :

-

Mounting Type :

Through Hole

Contact Material :

Electrolytic Copper

Length :

8.9mm

Contact Tail Length :

0.146 (3.70mm)

Operating Temperature :

-60°C ~ 100°C

Wire Gauge or Range - mm² :

-

Package :

Box

RoHS :

Compliant

Number of Levels :

1

Features :

-

Rated Current :

4A

Width :

10mm

Screw Size :

-

Total number of pins :

3

Manufacturer :

Wago

Series :

2092

Voltage - UL :

150 V

Rated current In :

6

Current - IEC :

6A

Orientation :

RIGHT ANGLE

Housing Material :

Polyamide (PA66), Nylon 6/6

Lead Free :

Lead Free

Temperature :

-60-100 °C

Over voltage category :

III

Connection :

Print

Number of Contacts :

3 Pole

REACH SVHC :

No SVHC

Max. temperature :

+100°C

Torque - Screw :

-
