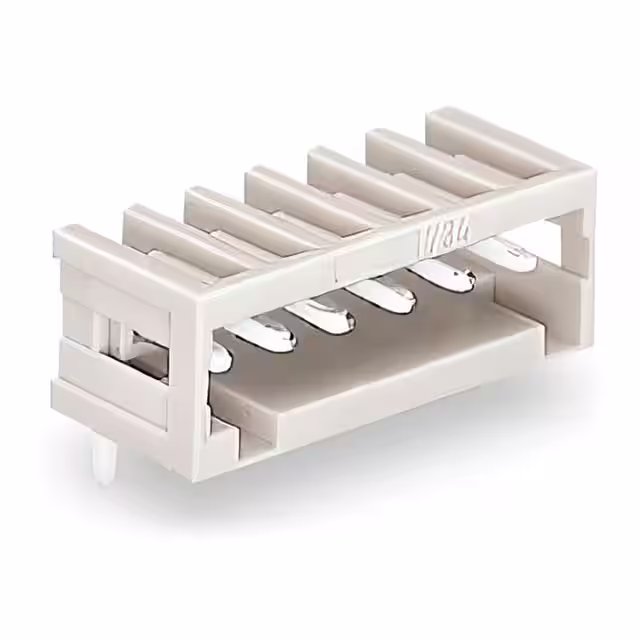

733-365

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Content :

200pc(s)

Number of Rows :

1

Flammability Rating :

UL94 V-0

Voltage :

150 V

Number of Contacts :

5 Pole

Connector contact surface :

Tin plated

Series :

2092

Lead Free :

Lead Free

RoHS :

Compliant

Contact Tail Length :

0.146 (3.70mm)

Torque - Screw :

-

Max. temperature :

+100°C

Max Operating Temperature :

100 °C

Total number of pins :

5

Material Flammability Rating :

UL94 V-0

Gender :

Male

CS :

2.50mm

Header Orientation :

90°, Right Angle

Current - UL :

4 A

Mounting Type :

Through Hole

Nominal current :

6A

Voltage Rating :

150 V

Pin shape :

Square

Color :

Grey

Pins per row :

5

Manufacturer part # :

733-365

Contact Plating :

Tin

Height :

11.5mm

Min. temperature :

-60°C

Product Status :

Active

Current - IEC :

6A

Rated Current :

4A

Type :

WAGO GmbH and Co. KG

Number of Positions :

5

Positions Per Level :

5

Current Rating :

6 A

Plug Wire Entry :

-

Manufacturer :

Wago

Termination Style :

Solder

Nominal voltage :

160V

Pitch :

0.098 (2.50mm)

Wire Gauge or Range - mm² :

-

Industrial packaging :

yes

Mount :

Through Hole

Wire Gauge or Range - AWG :

-

Dim :

(L x W x H) 8.9 x 15 x 11.5 mm

Min Operating Temperature :

-60 °C

Length :

8.9mm

Temperature :

-60-100 °C

Width :

15mm

Case material :

Polyamide

Insulation Height :

0.307 (7.80mm)

Insulation Material :

Polyamide

Nominal current - rounded value :

6A

No. of rows :

1

Contact Finish :

Tin

Connector Type :

PLUG

Voltage - IEC :

320 V

Voltage - UL :

150 V

Screw Size :

-

Board contact surface :

Tin plated

Number of Levels :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Operating Temperature :

-60°C ~ 100°C

Connection :

Print

Approvals :

CCA, CSA, UL

Rated Voltage :

150V

Package :

Box

Wire Strip Length :

-

Features :

-

Ingress Protection :

-

REACH SVHC :

No SVHC

Contact Mating Finish :

Tin

Current :

4 A

Contact Material :

Electrolytic Copper
