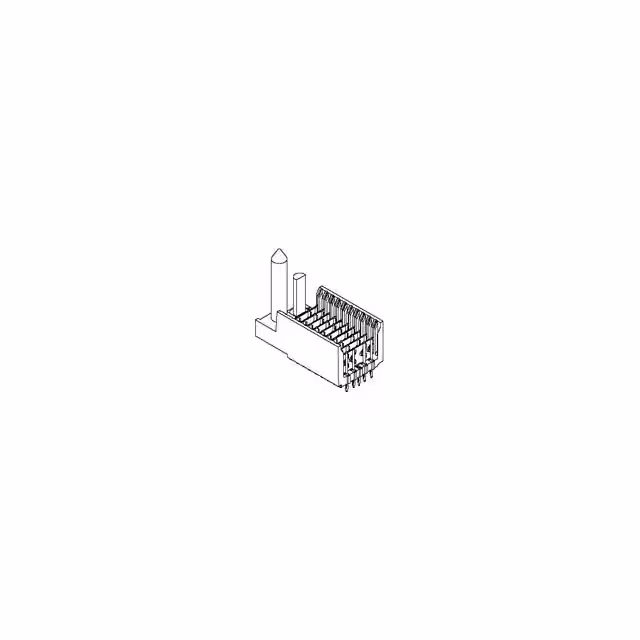

74696-1002

Manufacturer :

Molex

Product Category :

Specialized

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Length :

27 mm

Current Rating :

1 A

Manufacturer :

Molex

Voltage Rating Max :

120VDC/120VAC

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tube

Insertion Force-Max :

.3892 N

Number of Positions Loaded :

All

Max Voltage Rating (DC) :

120.12 kV

Material Flammability Rating :

UL94 V-0

Number of Contact Rows :

5

Plating Thickness :

30u inch

Type :

VHDM

UL Flammability Code :

94V-0

Max Operating Temperature :

105 °C

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Termination :

Press-Fit

Gender :

HDR

Contact Gender :

Male

Operating Temperature :

-55°C ~ 105°C

Body/Shell Style :

Receptacle

Body Depth :

0.484 inch

Termination Type :

Press Fit

Connector Type :

Header, Male Pins

Product Length (mm) :

27(mm)

Number of Contacts :

40(POS)

Voltage Rating :

120V

Number Of PCB Rows :

5

Pitch (mm) :

2(mm)

Depth :

14.5 mm

Terminal Pitch :

2 mm

Additional Feature :

10 SHIELD CONTACTS IN 1 ROW

Terminal Length :

0.098 inch

Total Number of Contacts :

50

Mounting Option 1 :

Guide Pin

Number of Positions :

40

Mounting Style :

Through Hole

Mount :

Through Hole

MIL Conformance :

No

Number of Circuits :

40

Orientation :

Vertical

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

PCB Contact Row Spacing :

2.286 mm

Body Breadth :

0.571 inch

Insulator Color :

Black

RoHS :

Compliant

Mating Contact Row Spacing :

0.089 inch

Withdrawl Force-Min :

.139 N

Min Operating Temperature :

-55 °C

Data Rate :

5 Gbps

Housing Color :

Black

Mixed Contacts :

No

Mounting Type :

Through Hole

Features :

Shielded

Number of Rows :

5

Subcategory :

Headers and Edge Type Connectors

IEC Conformance :

No

Rated Current (Signal) :

1 A

Filter Feature :

No

Country of Origin :

US

Reference Standard :

UL, CSA

Reliability :

COMMERCIAL

Contact Finish Thickness :

30.0µin (0.76µm)

Mounting Option 2 :

LOCKING

Voltage Rating (AC) :

120 V

Current Rating (Amps) :

1A

Dielectric Withstanding Voltage :

750VAC V

Insulation Resistance :

10000000000 Ω

Connector Style :

VHDM, Guide Left

Contact Style :

SQ PIN-SKT

Color :

Black

Housing Material :

Thermoplastic

Product Depth (mm) :

14.5(mm)

Contact Plating :

Gold Over Nickel

Contact Finish :

Gold

Durability :

200 Cycles

Series :

VHDM-HSD 74696

Lead Pitch :

2 mm

Package :

Box

Body Orientation :

Straight

Product Height (mm) :

25.8(mm)

Connector Usage :

-

Option :

GENERAL PURPOSE

Pitch :

2 mm

Product Status :

Active

Operating Temp Range :

-55C to 105C

Contact Resistance :

18 mΩ

DIN Conformance :

No

Termination Method :

Press Fit

Halogen Free :

Low Halogen

Contact Layout, Typical :

-

Number of Columns :

10

Max Voltage Rating (AC) :

120 V

Reach Compliance Code :

Compliant

Mating Contact Pitch :

0.079 inch

Contact Material :

COPPER ALLOY

Current Rating (Max) :

1/Contact(A)
