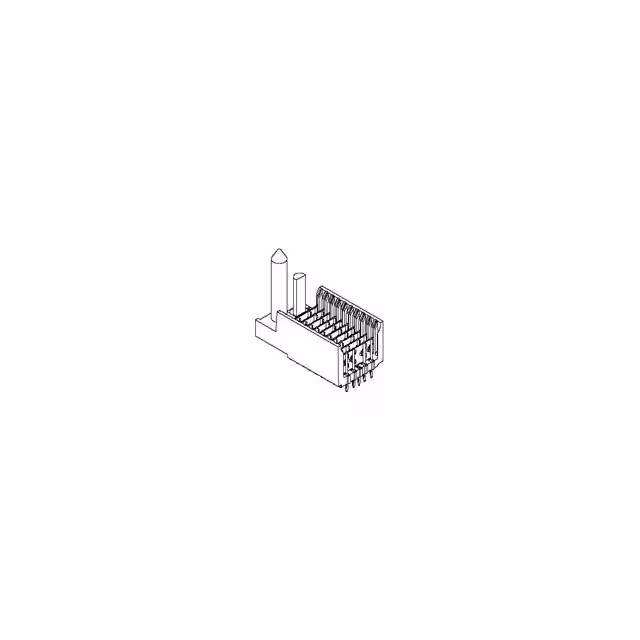

74696-9012
Or copy the link below:
- Mfr.Part #
- 74696-9012
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- HSD 5 ROW SIGNAL END BP ASSY PB
- Stock
- 808
- In Stock ：
- 808
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- RoHS :
- Compliant
- Mounting Style :
- Through Hole
- Number of Contacts :
- 40(POS)
- Connector Type :
- Header, Male Pins
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Gender :
- HDR
- Total Number of Contacts :
- 50
- Type :
- Backplane
- Features :
- Shielded
- Contact Gender :
- Male
- Number of Positions :
- 40
- Color :
- Black
- Termination Type :
- Press Fit
- Product Depth (mm) :
- 14.5(mm)
- Body Orientation :
- Straight
- Contact Layout, Typical :
- -
- MIL Conformance :
- No
- Termination :
- Press-Fit
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 5
- Number of Positions Loaded :
- All
- UL Flammability Code :
- 94V-0
- ECCN Code :
- EAR99
- Terminal Pitch :
- 2 mm
- Mixed Contacts :
- No
- Termination Method :
- Press Fit
- Reach Compliance Code :
- Compliant
- Contact Finish :
- Gold
- Connector Usage :
- -
- Product Height (mm) :
- 25.8(mm)
- Mounting Type :
- Through Hole
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Manufacturer :
- Molex
- Operating Temperature :
- -55°C ~ 105°C
- Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- HTS Code :
- 8536.69.40.40
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Gold Over Nickel
- Pitch (mm) :
- 2(mm)
- Number of Columns :
- 10
- Pitch :
- 0.079 (2.00mm)
- Country of Origin :
- US
- Connector Style :
- VHDM, Guide Left
- Current Rating (Amps) :
- 1A
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Number of Contact Rows :
- 5
- Additional Feature :
- 10 SHIELD CONTACTS IN 1 ROW
- Package :
- Tube
- Product Length (mm) :
- 27(mm)
- IEC Conformance :
- No
- Voltage Rating :
- 120V
- Housing Color :
- Black
- Product Status :
- Active
- Series :
- VHDM-HSD 74696
- Manufacturer Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
